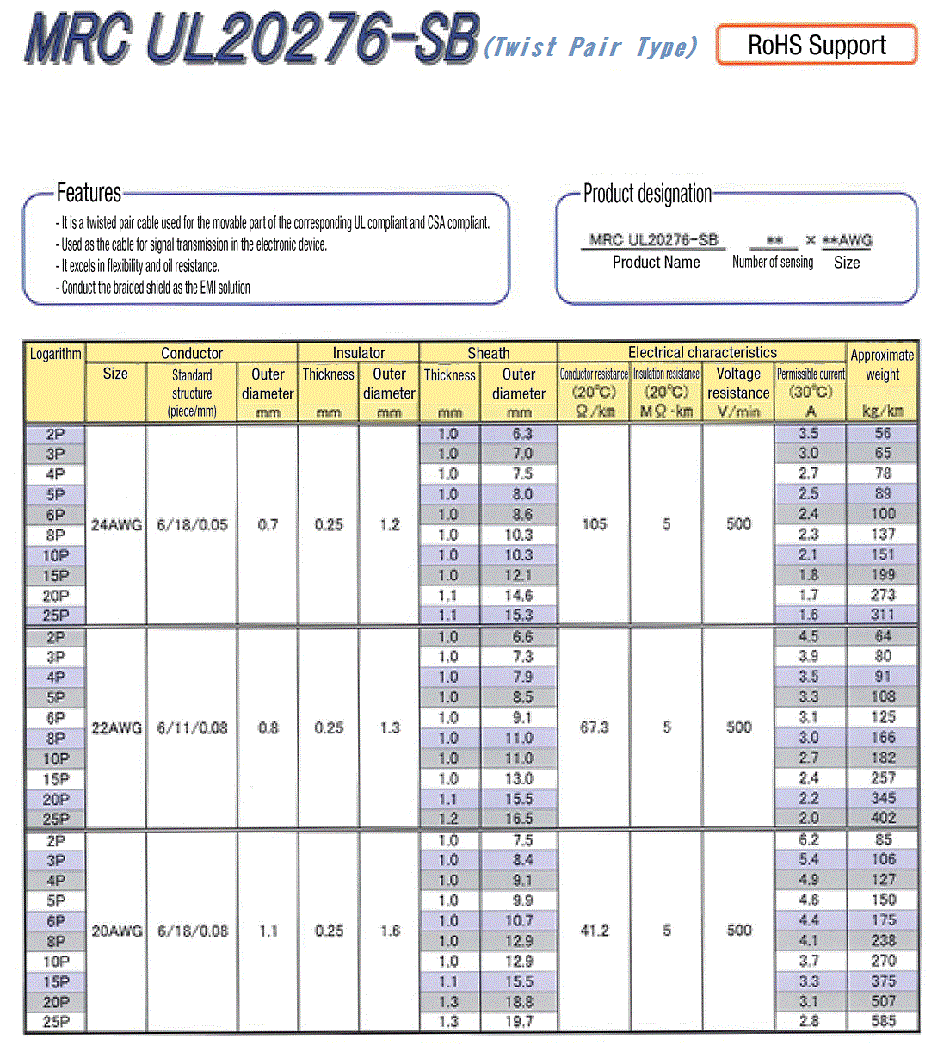

MRCSB 30V UL/CSA Listed Shielded Signal Cable for Flexing Applications
Click this image to zoom it.
Move the mouse over the image to zoom
30V UL/CSA listed shielded signal cable for mobile applications, MRC series
[Features]
UL/CSA listed twisted pair cable for mobile applications.
· Used as a cable for transferring signals within electronic equipment.
· Has excellent flexibility and oil resistance.
Japanese Only
Part Number
Configured Part Number is shown.
MRCSB-AWG24-14-50
| Part Number |
|---|
| MRCSB-AWG24-14-50 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 4,320.92 | 1 Piece(s) | 2 Day(s) or more |
Loading...
Basic Information
| Overall Length(m) | 50 | Conductor Cross Section(mm2) | 0.2 | AWG size(AWG) | 24 |
|---|---|---|---|---|---|
| Number Of Cores(Core) | 14 | Logarithm | 7P | Finished outer diameter(mm) | 8.6 |
| Rated Voltage | For Low Current Circuits | Shield | Available | Properties | Oil Resistance |
| Representative Standard | UL / CSA(c-UL) | Sheath (outer coating) color | Black | Grounding Wire | NA |
| Sheath (outer coating) material | PVC (Polyvinyl Chloride) | Insulation body materials | PVC (Polyvinyl Chloride) | Power supply/signal | For Signals |
Please check the type/dimensions/specifications of the part MRCSB-AWG24-14-50 in the MRCSB 30V UL/CSA Listed Shielded Signal Cable for Flexing Applications series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
