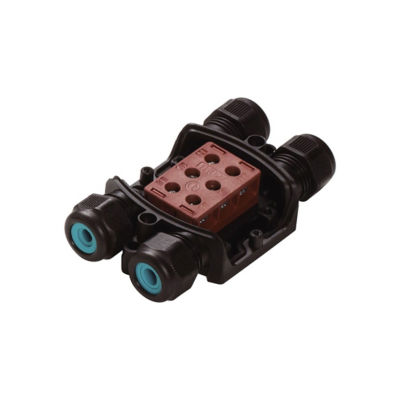

THA209 Type, Waterproof Relay Box
[Features]
· This is a waterproof relay box which includes a terminal block and features an integrated cable gland and body structure.
· Triple branching and quadruple branching types are available.
· Work can be performed easily via screw-based connection of the terminal block.
· Six different terminal elements are available: 3P, 5P, 8P, 3WP, 4WP and 3LP.
· Compatible with cables of various wire diameters through use of an optional rubber bushing.
Japanese Only
Part Number
Configured Part Number is shown.
THA209A-8P
Basic Information
| Application | Relay Box | W(mm) | 120 | H(mm) | 28 |
|---|---|---|---|---|---|
| D(mm) | 65 | Material | Nylon | Protection grade (IP) | IP68 |
| Mounting Base | No mounting base | Installation location | For both indoor/outdoor use / Not Specified | Standard | CE |
| Color specifications(Body) | Black | Color specifications(Top Cover) | Black/green / Black/Green | Presence of Key | NA |
| Heat dissipation hole | NA | Features | Terminal block 8P / 3 branches | Operating Temperature Range(°C) | -40 – 125 / -40-125 |
| Self-extinguishing(UL94) | V0,V2 | Special Notes | Compatible cable outer diameter φ7 to 13.5 |
Please check the type/dimensions/specifications of the part THA209A-8P in the THA209 Type, Waterproof Relay Box series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
