Stub Type for Stainless Steel/Soft Steel EX-SUS-GDS
Ideal for stainless steel, mild steel, copper alloy, etc.
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| EX-SUS-GDS-4.6 |
| EX-SUS-GDS-8.1 |
| EX-SUS-GDS-9 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Hole Diameter (Drilling Diameter) D (mm) | Groove Length (ℓ) (mm) | Overall Length (L) (mm) | Link Diameter (mm) | Tool No. |
|---|---|---|---|---|---|---|---|---|---|
MYR 71.94 | 1 Piece(s) | 3 Day(s) or more | 4.6 | 24 | 68 | 6 | 61546 | ||
MYR 127.65 | 1 Piece(s) | 1 Day(s) | 8.1 | 37 | 87 | 10 | 61581 | ||
MYR 119.89 | 1 Piece(s) | 1 Day(s) | 9 | 40 | 90 | 10 | 61590 |
Loading...
Basic Information
| Work Material | General Steel / Stainless Steel / Aluminum / Copper | Tool Material Type | High-Vanadium High-Speed Steel | Link Model | End Mill Link |
|---|---|---|---|---|---|
| Coating Presence | Included | Coating Type | TiN | Oil-Hole Presence | None |
| Point Angle(mm) | 120 | Thinning | Four Facet Point (Dc≤13) | Type | 4D or Less |

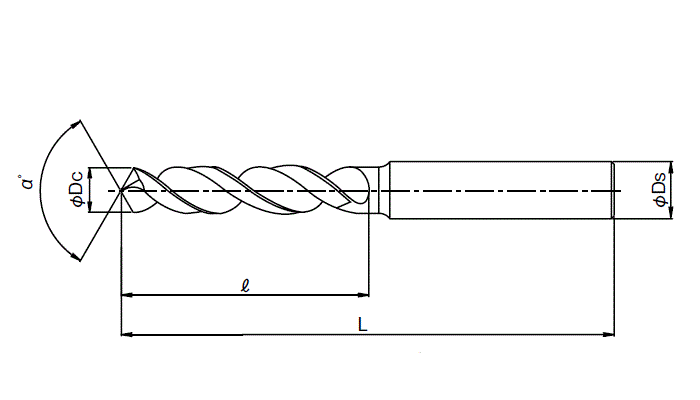

Specification/Dimensions
-
Hole Diameter (Drilling Diameter) D(mm)
-
Groove Length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Link Diameter(mm)
-
Tool No.
- 61546
- 61581
- 61590
-
type
- EX-SUS-GDS
Days to Ship
-
- All
- 1 Day(s) or Less
- 3 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
