Micro Drill "NEO PRO" Standard Blade Length
A new series that achieves stable long life machining developed for thin hole machining on steel. A coated drill supporting a wide range of materials from mild steel to high hardness steel (HRC 50).
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| ADR-SV-0026 |
| ADR-SV-0052 |
| ADR-SV-0095 |
| ADR-SV-0277 |
| ADR-SV-0299 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Diameter φD (mm) | Blade length ℓ (mm) | Overall Length L (mm) | tip angle (°) | Thinning |
|---|---|---|---|---|---|---|---|---|---|
MYR 195.59 | 1 Piece(s) | 3 Day(s) or more | 0.26 | 3 | 38 | 120 | - | ||
MYR 167.56 | 1 Piece(s) | 3 Day(s) or more | 0.52 | 6 | 38 | 120 | - | ||
MYR 167.56 | 1 Piece(s) | 3 Day(s) or more | 0.95 | 8 | 38 | 120 | - | ||
MYR 182.09 | 1 Piece(s) | 3 Day(s) or more | 2.77 | 25 | 50 | 135 | X Type | ||
MYR 182.09 | 1 Piece(s) | 3 Day(s) or more | 2.99 | 25 | 50 | 135 | X Type |
Loading...
Basic Information
| work material | general steel / Quenched and tempered steel / high hardness steel / Stainless Steel / Aluminum / Resin | Tool Material Type | Carbide | Shank Type | Pivot Type |
|---|---|---|---|---|---|
| Coating Y/N | Available | Coating Type | FCS | With/without Oil Hole | NA |

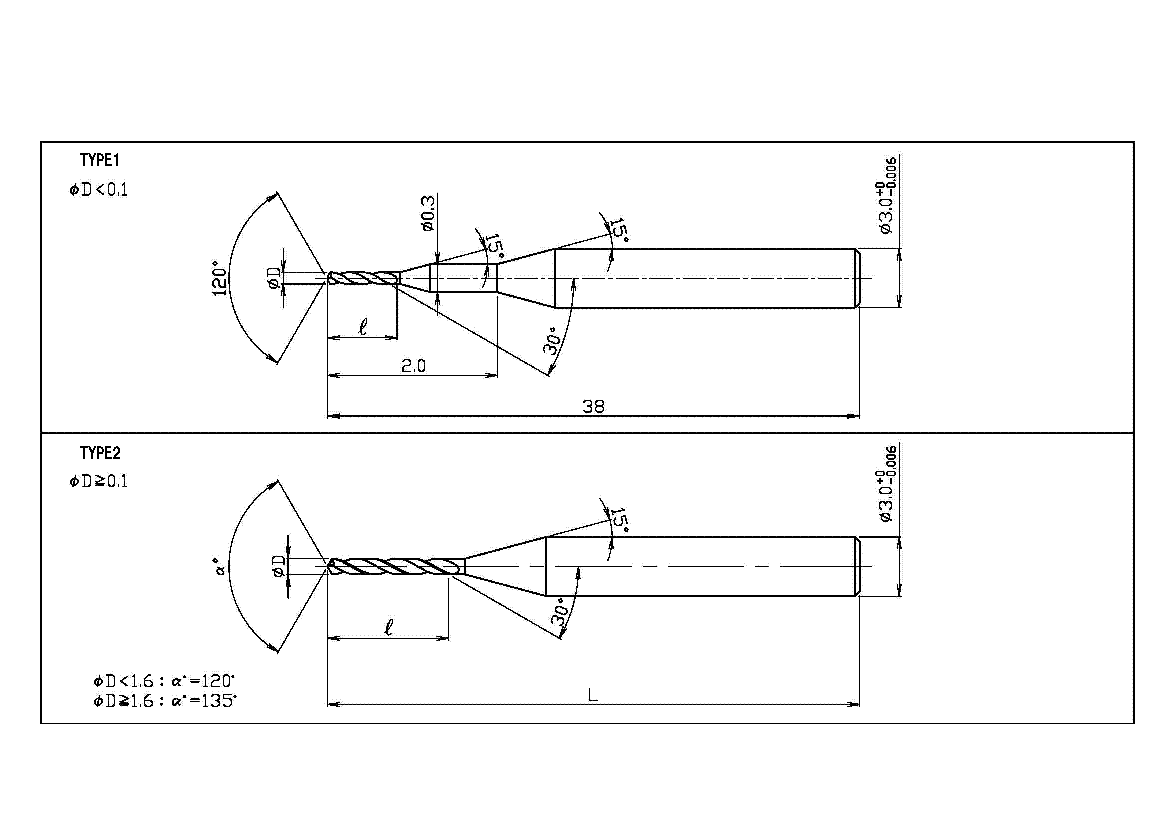

| shank d(mm) | 3 | outline drawing | TYPE2 | Torsion(°) | 30 |
| Blade diameter tolerance(mm) | ＋0～－0.005 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
