Carbide Drill with Step and 90° Chamfering Blade KDD-2
Both tip diameter and large diameter have torsional angle of 30°. Lineup of tip diameters from φ0.5 to φ6 in 0.05 increments.
Part Number
Configured Part Number is shown.
KDD-245510
| Part Number |
|---|
| KDD-245510 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 578.70 | 1 Piece(s) | 3 Day(s) or more |
Loading...
Basic Information

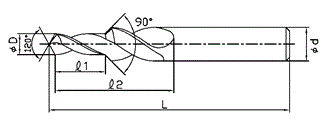

| Blade diameter (D1)(mm) | 4.55 | Blade length ℓ(mm) | 10 | work material | general steel / Quenched and tempered steel / Aluminum |
|---|---|---|---|---|---|
| Overall Length L(mm) | 80 | Shank Type | End Mill Shank | Coating Y/N | NA |
| With/without Oil Hole | NA | Groove Length ℓ2 | 25 | Handle diameter d(mm) | 8 |
| Blade diameter tolerance | 0～－0.01 | Handle diameter tolerance | 0～－0.009 | Torsional Angle | Torsional Angle 30° |
| Tip angle | 120° | Chamfer angle tolerance | ±30' |
Please check the type/dimensions/specifications of the part KDD-245510 in the Carbide Drill with Step and 90° Chamfering Blade KDD-2 series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
