Air Gun (Cleanroom Cleaned)【1-2 Pieces Per Package】
A special precision air gun that can provide a high air flow rate.
[Features]
· Air can be supplied at high flow rates since the filtration accuracy of the hollow fiber membrane filter is 0.01 μm, with a large effective filtration area of 8 cm².
[Applications]
· Quick couplers are used when connecting a compressor, etc., to a coil hose.
· Sizes are selectable according to the air outlet diameter.
Part Number
Configured Part Number is shown.
Features, Outline Drawing And Dimensions Of Each Part Of Air Gun

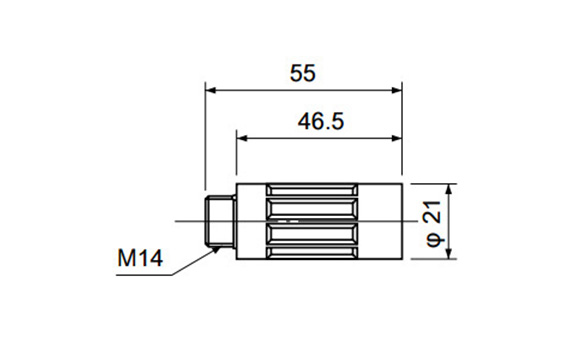

Cartridge
- The material is PAR (polyarylate) for the main unit and PP (polypropylene) for the hollow fiber membrane.
- The outside dimensions are ø21 (diameter 21 mm) × ø45 (diameter 45 mm).
- Weight is 11.5 g.
- Filtration precision is 0.01 μm.

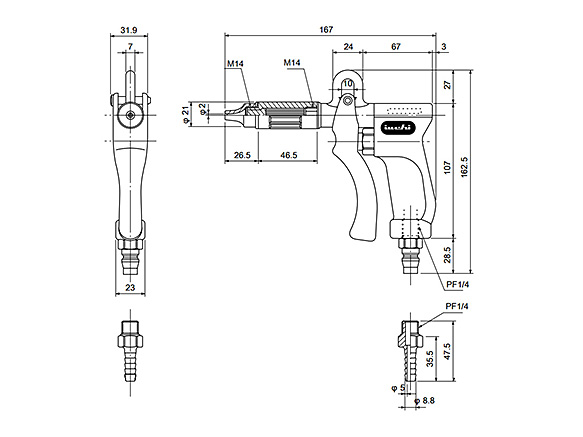

Air gun body
- The material is ABS resin for the main unit, PP (polypropylene) for the lever and PA (polyamide) for the nozzle.
- Pressure resistance is 0.39 MPa (4 kgf/cm2).
- Operating fluids are air and nitrogen.
- Hose nipple (included) is ø9 (outside diameter 9 mm).
- External dimensions are 170 × 140 mm.
- Weight is 120g.

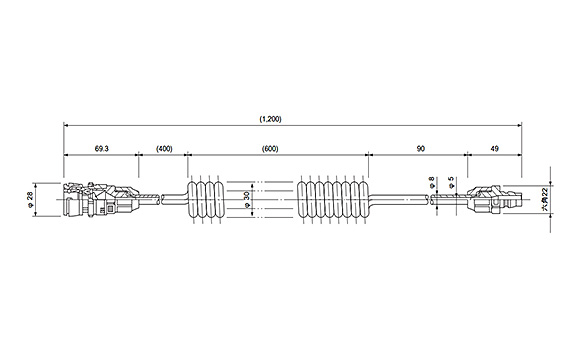

Coil hose
- The material is PU (polyurethane) for the hose part and POM (polyacetal) for the quick coupler.
- Pressure resistance is 0.39 MPa (4 kgf/cm2).
- Weight is 250g.
- Usable range is 4 m.

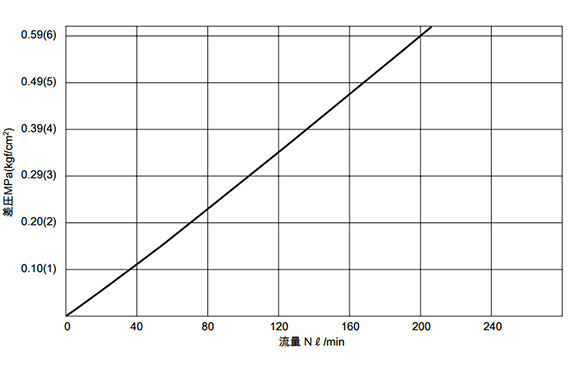

About Its Flow Rate Properties
Flow rate properties
Precautions On The Use Of This Product
- Please be sure to use the compressor at a maximum flow rate of 0.38 MPa (120 L/min or less, 70 L/min or more).
| Part Number |
|---|
| 6-6602-02 |
| 6-6602-03 |
| Part Number | Standard Unit Price | Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Days to Ship | Other | Specifications | Material | External Dimensions (mm) | Manufacturer Product Name | Manufacturer Model | JAN Code | Filtration Accuracy (μm) | Pressure Resistance (MPa) | Applicable Fluids | Hose Nipple (Bundled Items) (mm) | Operating Range (m) | Compatible Model | Weight (g) | Features | Amount Of Content |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 432.82 | 2 Pieces Per Package | 1 Pack(s) | 1 Day(s) | Option | 2 pcs. | Main Body / PAN (Polyacrylonitrile), Hollow Fiber Membrane / PP (Polypropylene) | φ21X45 | Replacement Cartridge x 2 | Replacement Cartridge | 4571110737880 | 0.01 | - | - | - | - | - | 11.5 | - | 1 Pack (2 pcs.) | ||
MYR 565.49 | 1 Piece(s) | 1 Day(s) | Option | Coil Hose + Oil Free Coupler | Hose / PU (Polyurethane), Quick Coupler / POM (Polyacetal) | - | Air Gun (Clean-Room Washed) Coil Hose | Coiled Hose | 4571110737897 | - | 0.39(4kgf/cm2) | - | - | 4 | - | 250 | - | 1 pc. |
Loading...
Basic Information
| Product Type | Spray gun, air gun |
|---|
Specification/Dimensions
-
Specifications
- Air Gun x 1, Filters x 2, Hose Nipple x 1, Tip Nozzle x 1
- 2 pcs.
- Coil Hose + Oil Free Coupler
-
Material
- Hose / PU (Polyurethane), Quick Coupler / POM (Polyacetal)
- Main Body / ABS Resin, Lever/PP (Polypropylene), Nozzle/PA (Polyamide)
- Main Body / PAN (Polyacrylonitrile), Hollow Fiber Membrane / PP (Polypropylene)
-
External Dimensions(mm)
- φ21X45
- 170X140
- -
-
Manufacturer Product Name
- Replacement Cartridge x 2
- Air Gun (Clean-Room Washed) Coil Hose
- Air Gun Set
-
Manufacturer Model
- Air Gun Set
- Coiled Hose
- Replacement Cartridge
-
JAN Code
-
Amount Of Content
- 1 pc.
- 1 Pack (2 pcs.)
- 1 Set (Main Unit, Filter: 2 pcs, Hose Nipple, Tipped Nozzle)
-
type
- 6-6602
-
Other
- Option
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
