Knurled Knobs/Diamond Cut
Click this image to zoom it.
Part Number
Configured Part Number is shown.

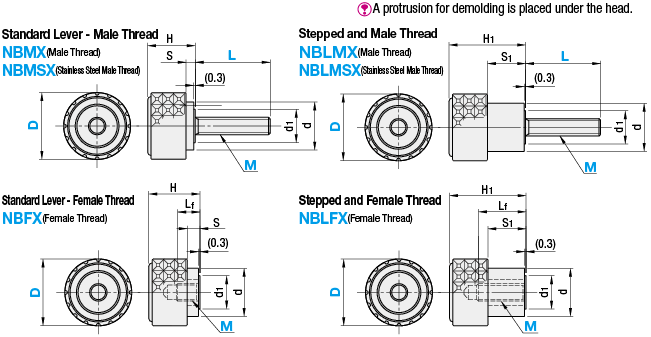

| Type | Shape | Knob | Screws | ||
| Standard | Stepped | [ M ]Material | [ M ]Material | [ S ]Surface Treatment | |
| NBMX | NBLMX | Male Thread | ABS | SS400 | Chrome Plating |
| NBMSX | NBLMSX | SUS304 | - | ||
| NBFX | NBLFX | Female Thread | Brass (Insert) | - | |

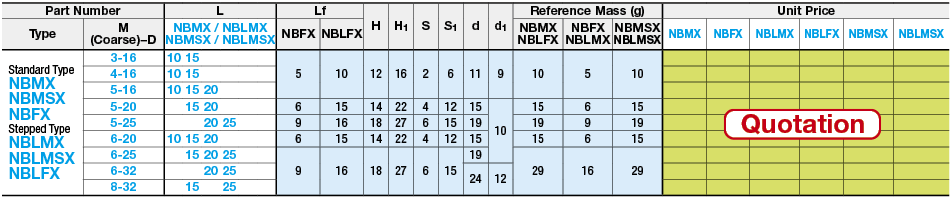

Specifications
| Part Number | - | L |
| NBMX3-16 | - | 10 |
| NKRM8 | - | 16 |
| NKRR12 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Mounting Section Type | Mounting Section Dia. M | Mounting Section, Length L (mm) | Threaded End Machining | Tapped, Round Hole Machining | Set Screw Flat Machining | Mounting Section, Material | Mounting Section, Surface Treatment | Main Body Dia. (D) (Ø) | Main Body Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 3 | - | - | Blind Bore | None | Brass | Not Provided | 16 | 12 | |
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 4 | - | - | Blind Bore | None | Brass | Not Provided | 16 | 12 | |
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 5 | - | - | Blind Bore | None | Brass | Not Provided | 16 | 12 | |
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 5 | - | - | Blind Bore | None | Brass | Not Provided | 20 | 14 | |
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 5 | - | - | Blind Bore | None | Brass | Not Provided | 25 | 18 | |
MYR 10.59 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 6 | - | - | Blind Bore | None | Brass | Not Provided | 20 | 14 | |
MYR 11.77 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 6 | - | - | Blind Bore | None | Brass | Not Provided | 25 | 18 | |
MYR 14.12 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 6 | - | - | Blind Bore | None | Brass | Not Provided | 32 | 18 | |
MYR 14.12 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped | 8 | - | - | Blind Bore | None | Brass | Not Provided | 32 | 18 | |
MYR 12.95 | 1 Piece(s) | Available | 1 Day(s) | Tapped (Stepped) | 3 | - | - | Blind Bore | None | Brass | Not Provided | 16 | 16 | |
MYR 12.95 | 1 Piece(s) | Available | 1 Day(s) | Tapped (Stepped) | 4 | - | - | Blind Bore | None | Brass | Not Provided | 16 | 16 | |
MYR 15.30 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped (Stepped) | 5 | - | - | Blind Bore | None | Brass | Not Provided | 16 | 16 | |
MYR 15.30 | 1 Piece(s) | Available | 1 Day(s) | Tapped (Stepped) | 5 | - | - | Blind Bore | None | Brass | Not Provided | 20 | 22 | |
MYR 15.30 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped (Stepped) | 5 | - | - | Blind Bore | None | Brass | Not Provided | 25 | 27 | |
MYR 16.48 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped (Stepped) | 6 | - | - | Blind Bore | None | Brass | Not Provided | 20 | 22 | |
MYR 17.66 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped (Stepped) | 6 | - | - | Blind Bore | None | Brass | Not Provided | 25 | 27 | |
MYR 20.01 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped (Stepped) | 6 | - | - | Blind Bore | None | Brass | Not Provided | 32 | 27 | |
MYR 21.19 | 1 Piece(s) | Available | 2 Day(s) or more | Tapped (Stepped) | 8 | - | - | Blind Bore | None | Brass | Not Provided | 32 | 27 | |
MYR 16.48 | 1 Piece(s) | Available | 2 Day(s) or more | Threaded (Stepped) | 5 | 10 | None | - | - | SUS304 | Not Provided | 16 | 16 | |
MYR 12.31 | 1 Piece(s) | Available | 1 Day(s) | Threaded (Stepped) | 5 | 10 | None | - | - | [Steel] SS400 | Chrome Plating | 16 | 16 | |
MYR 14.12 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 5 | 10 | None | - | - | SUS304 | Not Provided | 16 | 12 | |
MYR 10.59 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 3 | 10 | None | - | - | [Steel] SS400 | Chrome Plating | 16 | 12 | |
MYR 10.70 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 4 | 10 | None | - | - | [Steel] SS400 | Chrome Plating | 16 | 12 | |
MYR 10.70 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 5 | 10 | None | - | - | [Steel] SS400 | Chrome Plating | 16 | 12 | |
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Threaded | 5 | 20 | None | - | - | [Steel] SS400 | Chrome Plating | 20 | 14 | |
MYR 10.59 | 1 Piece(s) | Available | 3 Day(s) | Threaded | 5 | 25 | None | - | - | [Steel] SS400 | Chrome Plating | 25 | 18 | |
MYR 10.59 | 1 Piece(s) | Available | 2 Day(s) or more | Threaded | 6 | 15 | None | - | - | [Steel] SS400 | Chrome Plating | 25 | 18 |
| Part Number |
|---|
Loading...
Basic Information
| Main Body, Type | Round Shape | Round Shape, Type | Knob | Side Machined | Diamond Cut Type |
|---|---|---|---|---|---|
| Additional Function | None | Main Body Material | ABS |
Specification/Dimensions
-
Mounting Section Type
- Threaded
- Threaded (Stepped)
- Tapped
- Tapped (Stepped)
-
Mounting Section Dia. M
-
Mounting Section, Length L(mm)
-
Threaded End Machining
- None
-
Tapped, Round Hole Machining
- Blind Bore
-
Set Screw Flat Machining
- None
-
Mounting Section, Material
- SUS304
- Steel
- Brass
-
Mounting Section, Surface Treatment
- Not Provided
- Chrome Plating
-
Main Body Dia. (D)(Ø)
-
Main Body Height(mm)
-
type
- NBFX
- NBLFX
- NBLMSX
- NBLMX
- NBMSX
- NBMX
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
- 3 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
