Plastic Knobs/Star Knobs
Part Number
Configured Part Number is shown.

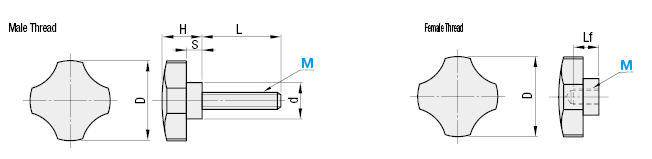

| Type | Screws | Knobs | Screws | |
| [ M ]Material | [ M ]Material | [ S ]Surface Treatment | ||
| NKPM | Male Thread | Nylon 6 | SS400 | Trivalent Chromate |
| NKPF | Female Thread | Gunmetal (Insert) | - | |
Specifications
| Part Number | - | Knob Color | - | L |
| NKPM5 NKPF8 NCRM6 | - - | B R | - | 30 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| NKPF6-B |
| NKPF8-B |
| NKPF8-R |
| NKPF10-B |
| NKPF12-B |
| NKPM5-B |
| NKPM5-R |
| NKPM6-B |
| NKPM6-R |
| NKPM8-B |
| NKPM8-R |
| NKPM10-B |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Mounting Section Type | Mounting Section Dia. M | Mounting Section, Length L (mm) | Threaded End Machining | Tapped, Round Hole Machining | Set Screw Flat Machining | Mounting Section, Material | Mounting Section, Surface Treatment | Main Body Dia. (D) (Ø) | Main Body Height (mm) | Knob Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 7.77 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 6 | - | - | Blind Bore | None | Gunmetal | Not Provided | 33 | 16.5 | B (Black) | |
MYR 9.57 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 8 | - | - | Blind Bore | None | Gunmetal | Not Provided | 40 | 20 | B (Black) | |
MYR 9.57 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 8 | - | - | Blind Bore | None | Gunmetal | Not Provided | 40 | 20 | R (Red) | |
MYR 19.06 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 10 | - | - | Blind Bore | None | Gunmetal | Not Provided | 45 | 20 | B (Black) | |
MYR 21.19 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 12 | - | - | Blind Bore | None | Gunmetal | Not Provided | 50 | 24 | B (Black) | |
MYR 6.84 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 5 | 25 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 25 | 15 | B (Black) | |
MYR 5.89 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 5 | 25 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 25 | 15 | R (Red) | |
MYR 7.77 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 6 | 30 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 33 | 16.5 | B (Black) | |
MYR 7.06 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 6 | 30 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 33 | 16.5 | R (Red) | |
MYR 9.57 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 8 | 40 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 40 | 20 | B (Black) | |
MYR 9.42 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 8 | 40 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 40 | 20 | R (Red) | |
MYR 11.83 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 10 | 40 | None | - | - | [Steel] SS400 | [Trivalent Chromate] Trivalent Chromate | 45 | 20 | B (Black) |
Loading...
Basic Information
| Main Body, Type | Polygonal Shape | Polygonal Shape, Type | Star | Additional Function | None |
|---|---|---|---|---|---|
| Main Body Material | Nylon 6 (Gloss) |
Specification/Dimensions
-
Mounting Section Type
- Threaded
- Tapped
-
Mounting Section Dia. M
-
Mounting Section, Length L(mm)
-
Threaded End Machining
- None
-
Tapped, Round Hole Machining
- Blind Bore
-
Set Screw Flat Machining
- None
-
Mounting Section, Material
- Steel
- Gunmetal
- Steel
-
Mounting Section, Surface Treatment
- Not Provided
- Trivalent Chromate
-
Main Body Dia. (D)(Ø)
-
Main Body Height(mm)
-
Knob Color
- B (Black)
- R (Red)
-
type
- NKPF
- NKPM
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
