[Economy Type] Knurled Plastic Knob Screws
![[Economy Type] Knurled Plastic Knob Screws](http://stg0-my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/10302519060.jpg?$product_main$)
- Volume Discount
Knurled Knob Screws are offered at economical price.
Part Number
Configured Part Number is shown.

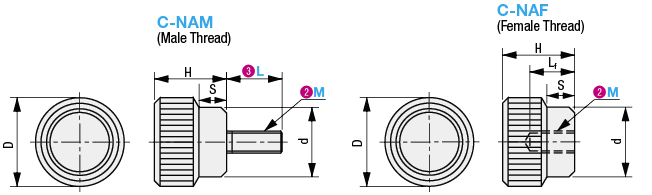

![[Economy Type] Knurled Plastic Knob Screws:Related Image](http://stg0-my.misumi-ec.com/linked/item/10302519060/img/drw_01large.gif)
| Type | Thread | Knobs | Thread | |
| [ M ]Material | [ M ]Material | [ S ]Surface Treatment | ||
| C-NAM | Male Thread | Phenol Resin | SUM22L | Zinc Plating |
| C-NAF | Female Thread | Brass (Insert) | - | |
Specifications
![[Economy Type] Knurled Plastic Knob Screws:Related Image](http://stg0-my.misumi-ec.com/linked/item/10302519060/img/1.gif)
~![[Economy Type] Knurled Plastic Knob Screws:Related Image](http://stg0-my.misumi-ec.com/linked/item/10302519060/img/3.gif)
.Part Number (Type·![[Economy Type] Knurled Plastic Knob Screws:Related Image](http://stg0-my.misumi-ec.com/linked/item/10302519060/img/2.gif) M) | - | L |
| C-NAM4 C-NAF5 | - | 10 |
| Part Number | L Selection | Lf | D | H | S | d | Mass (g) | ||||
| Type | M | C-NAM | C-NAF | C-NAM | C-NAF | ||||||
| C-NAM (Male Thread) C-NAF (Female Thread) | 4 | 10 | 16 | 6 | 20 | 13 | 6 | 10 | 6 | 6 | |
| 5 | 10 | 25 | 6 | 20 | 16 | 7 | 12 | 8 | 8 | ||
| 6 | 16 | 25 | 10 | 25 | 19 | 9 | 16 | 12 | 10 | ||
| 8 | 16 | 25 | 12 | 32 | 22 | 10 | 20 | 29 | 17 | ||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| C-NAF4 |
| C-NAF5 |
| C-NAF6 |
| C-NAF8 |
| C-NAM4-10 |
| C-NAM4-16 |
| C-NAM5-10 |
| C-NAM5-25 |
| C-NAM6-16 |
| C-NAM6-25 |
| C-NAM8-16 |
| C-NAM8-25 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Mounting Section Type | Mounting Section Dia. M | Mounting Section, Length L (mm) | Threaded End Machining | Tapped, Round Hole Machining | Set Screw Flat Machining | Mounting Section, Material | Mounting Section, Surface Treatment | Main Body Dia. (D) (Ø) | Main Body Height (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 9.01 | 1 Piece(s) | 1 Day(s) | Tapped | 4 | - | - | Through | None | Brass | Not Provided | 20 | 13 | ||
MYR 8.19 | 1 Piece(s) | Same day | Tapped | 5 | - | - | Through | None | Brass | Not Provided | 20 | 16 | ||
MYR 22.59 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 6 | - | - | Through | None | Brass | Not Provided | 25 | 19 | |
MYR 25.02 | 1 Piece(s) | Available | 1 Day(s) | Tapped | 8 | - | - | Through | None | Brass | Not Provided | 32 | 22 | |
MYR 23.59 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 4 | 10 | None | - | - | [Steel] SUM22L | Zinc Plating | 20 | 13 | |
MYR 9.83 | 1 Piece(s) | 1 Day(s) | Threaded | 4 | 16 | None | - | - | [Steel] SUM22L | Zinc Plating | 20 | 13 | ||
MYR 9.83 | 1 Piece(s) | 1 Day(s) | Threaded | 5 | 10 | None | - | - | [Steel] SUM22L | Zinc Plating | 20 | 16 | ||
MYR 9.83 | 1 Piece(s) | 1 Day(s) | Threaded | 5 | 25 | None | - | - | [Steel] SUM22L | Zinc Plating | 20 | 16 | ||
MYR 11.14 | 1 Piece(s) | 1 Day(s) | Threaded | 6 | 16 | None | - | - | [Steel] SUM22L | Zinc Plating | 25 | 19 | ||
MYR 11.14 | 1 Piece(s) | 1 Day(s) | Threaded | 6 | 25 | None | - | - | [Steel] SUM22L | Zinc Plating | 25 | 19 | ||
MYR 28.73 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 8 | 16 | None | - | - | [Steel] SUM22L | Zinc Plating | 32 | 22 | |
MYR 28.73 | 1 Piece(s) | Available | 1 Day(s) | Threaded | 8 | 25 | None | - | - | [Steel] SUM22L | Zinc Plating | 32 | 22 |
