Cable Connector (Slim)
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
Cable connector ideal for repairing the wire lead-out portion in narrow spaces
● Slim cable gland that saves space.
● Since the exterior is small, it can also be installed in a narrow space.
● It is ideal for fixing the wire lead part of sensors, small motors, etc.
● It is made of metal with high rigidity.
● IP67 protective structure. It also has oil resistance.
Part Number
Configured Part Number is shown.
Specifications
■Standard Table

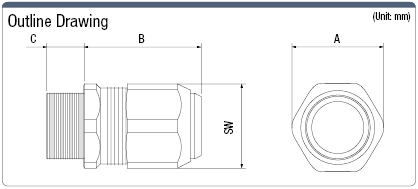

| Model | No. | Applicable Electric Wire Diameter (mm) | Mounting Screw | Compatible Lock Nut >> below | A (Ø) | SW | B | C | Weight (g) | Mounting Hole Diameter | Compatible Plate Thickness |
| CRMPT | M4-2025 | Ø2 ~ 2.5 | M4 (P = 0.5) | CRMPT-LN-M4 | 7 | 6.5 | 12.6 | 4.5 | 2 | Ø4 | 2mm or less |
| M6-2540 | Ø2.5 ~ 4 | M6 (P = 0.5) | CRMPT-LN-M6 | 8.8 | 8 | 15.3 | 4 | Ø6 | |||
| M7-3550 | Ø3.5 ~ 5 | M7 (P = 0.5) | CRMPT-LN-M7 | 10 | 9 | Ø7 | |||||
| M8-4560 | Ø4.5 ~ 6 | M8 (P = 0.5) | CRMPT-LN-M8 | 11 | 10 | 5 | Ø8 | ||||
| M9-5570 | Ø5.5 ~ 7 | M9 (P = 0.5) | CRMPT-LN-M9 | 12 | 11 | Ø9 | |||||
| M10-6580 | Ø6.5 ~ 8 | M10 (P = 0.5) | CRMPT-LN-M10 | 13 | 12 | 6 | Ø10 | ||||
| M12-80100 | Ø8 ~ 10 | M12 (P = 0.5) | CRMPT-LN-M12 | 16 | 15 | 19.8 | 10 | Ø12 |
More Information
Specifications

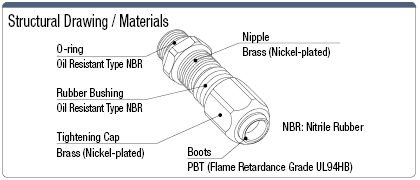

| Material | * Refer to the Structural Drawing / Materials on the right |
| Operating Temperature Range | -25 ~ 100°C |
| Part Number |
|---|
| CRMPT-M4-2025 |
| CRMPT-M6-2540 |
| CRMPT-M7-3550 |
| CRMPT-M8-4560 |
| CRMPT-M9-5570 |
| CRMPT-M10-6580 |
| CRMPT-M12-80100 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Conforming wire diameter (mm) | Mounting screw | Mounting hole diameter (mm) |
|---|---|---|---|---|---|---|---|
MYR 29.93 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 2 ~ 2.5 | M4 (P = 0.5) | φ4 | |
MYR 29.79 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 2.5 ~ 4 | M6 (P = 0.5) | φ6 | |
MYR 30.66 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 3.5 ~ 4 | M7 (P = 0.5) | φ7 | |
MYR 30.48 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 4.5 ~ 6 | M8 (P = 0.5) | φ8 | |
MYR 33.96 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 5.5 ~ 7 | M9 (P = 0.5) | 9 | |
MYR 34.00 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 6.5 ~ 8 | M10 (P = 0.5) | φ10 | |
MYR 41.02 | 1 Piece(s) | Available | 2 Day(s) or more | Ø 8 ~ 10 | M12 (P = 0.5) | φ12 |
Loading...
Basic Information
| Material (Main body) | Nickel-plated / Nitrile Rubber / PBT | Operating temperature range(℃) | -25 ~ 100 | Color | Silver |
|---|
Specification/Dimensions
-
Conforming wire diameter(mm)
- Ø 2 ~ 2.5
- Ø 2.5 ~ 4
- Ø 3.5 ~ 4
- Ø 4.5 ~ 6
- Ø 5.5 ~ 7
- Ø 6.5 ~ 8
- Ø 8 ~ 10
-
Mounting screw
-
Mounting hole diameter(mm)
- φ4
- φ6
- φ7
- φ8
- 9
- φ10
- φ12
Days to Ship
-
- All
- 2 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
