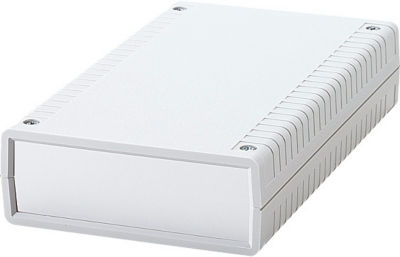

Plastic Control Box Front and Rear Panels Economy Type
- Volume Discount
A small, low priced box with front and rear panels.
- Hole Machining
A small, low priced box with front and rear panels！
● Two types available, with plastic or aluminum front and rear panels.
● The catches of the top and bottom covers are contoured
to prevent dust buildup.
・ A blue vinyl sheet is attached to the aluminum panel
when delivered.
Part Number
Configured Part Number is shown.
TWBOX-G762A

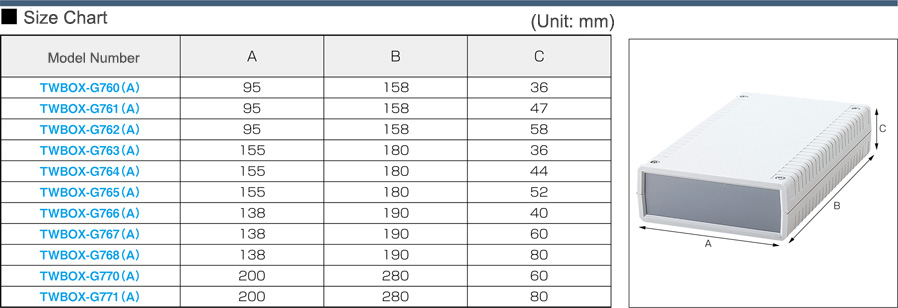

Specification Table
| Plastic panel type | Aluminum panel type |
| Model Number | Model Number |
| TWBOX-G760 | TWBOX-G760A |
| TWBOX-G761 | TWBOX-G761A |
| TWBOX-G762 | TWBOX-G762A |
| TWBOX-G763 | TWBOX-G763A |
| TWBOX-G764 | TWBOX-G764A |
| TWBOX-G765 | TWBOX-G765A |
| TWBOX-G766 | TWBOX-G766A |
| TWBOX-G767 | TWBOX-G767A |
| TWBOX-G768 | TWBOX-G768A |
| TWBOX-G770 | TWBOX-G770A |
| TWBOX-G771 | TWBOX-G771A |

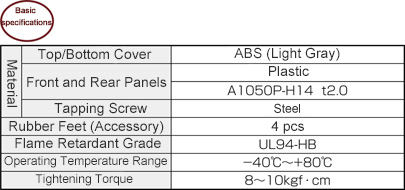

Basic Specifications
| Part Number |
|---|
| TWBOX-G762A |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 50.81 | 1 Piece(s) | Available | 2 Day(s) or more |
Loading...

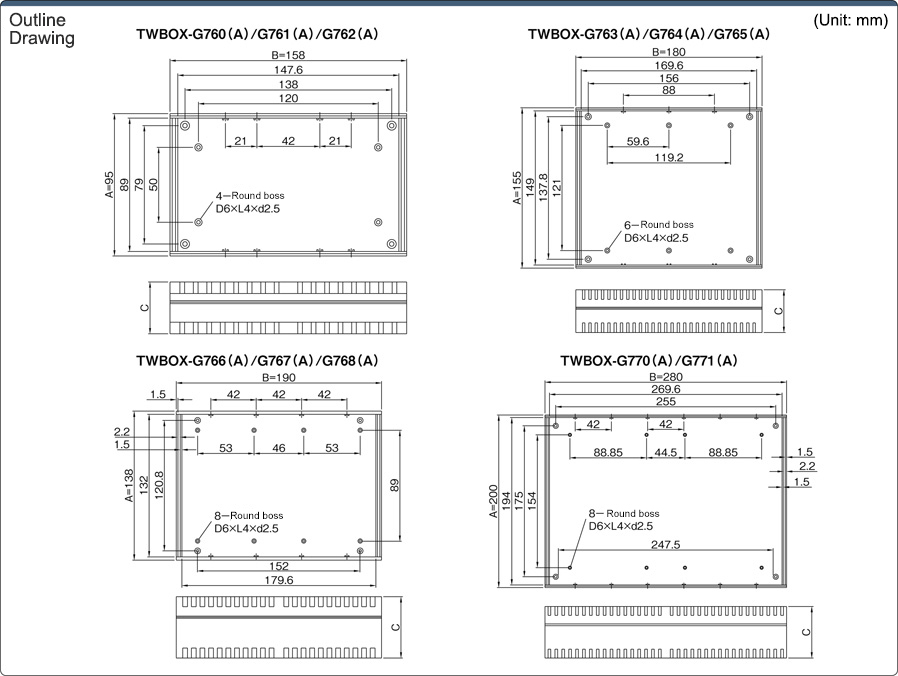

Outline Drawing
Basic Information
| Type | Control box | Dimension width W(mm) | 158 | Dimension vertical H(mm) | 95 |
|---|---|---|---|---|---|
| Dimension depth D(mm) | 58 | Material | Resin | Protection function (environmentally resistant) | None |
| Intermediate plate | Without Board | Installation | Indoor | Locking type | Screw-Fastened Model |
| Main body plate thickness(mm) | 2 | Features | Aluminum Panel Model | Color | Light Gray |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
