MASWG-CP3KK CCC / UL / CE / PSE Compatible Cable

Click this image to zoom it.

Move the mouse over the image to zoom

Volume Discount

MISUMI_Test

300 V CCC Supported Mobile Power Sources Cable

c-UL
CE-Compliant
CCC
VW-1
PSE Law
ULAWM
For Power Supply
European Standards 300 / 500 V

●The "SWING-MASTER" Class-C is one of Misumi's original MASTER cables.
●This product complies with various standards such as CCC, UL CE and PSE.
●Uses composite stranded conductors and ultrafine conductors, making it suitable for low-speed moving parts such as those in industrial robots.
● Hardwearing and twist-resistant as it uses soft materials.

● 6-core and above of this series are compatible with CCC, UL and c-UL only.
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter]
* Color and softness may vary slightly due to manufacturer changes.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

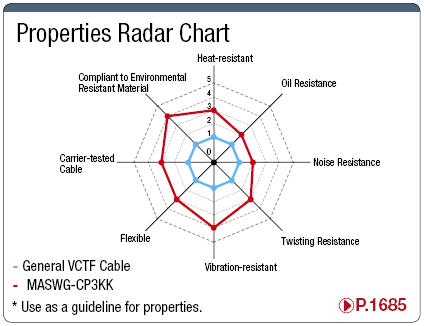

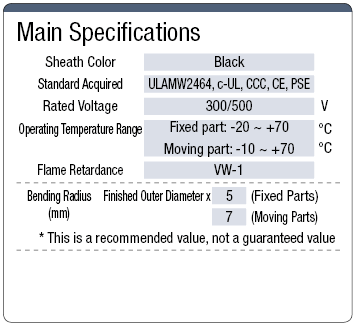

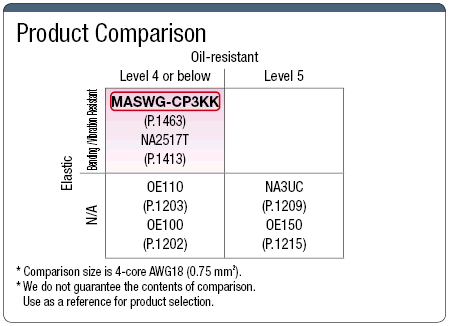

MASWG-CP3KK CCC / UL / CE / PSE Compatible Cable:Related Image

* Before ordering, confirm that the following symbols in the order (if any) are correct: "( = single-byte bracket"; "1 = One"; "I = i"; "0 = zero"; "O = oh".

Model Number	Section Area (mm²)	Number of Cores	Total Length or Specified Length (m)
MASWG-CP3KK	0.75	2	1 ~ 100 (Specify 1 m Increment)
		3
		4
		6
		8
		12
	1.0	2
		3
		4
	1.5	2
		3
		4
	2.5	2
		3
		4

Be sure to read the following precautions when you place an order.
* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
* For the latest information regarding standard unit price, quantity slide unit price, shipment days, etc., refer to the Misumi VONA e-catalog.
* All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]

More Information

Specifications

Model Number	Section Area (mm²)	Number of Cores	AWG Estimated Size ^*1	Twisted Structure	Number of Wire Cores	Finished Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification
								Allowable Current A (30°C)^*2	Conductor Resistance Ω/km (20 °C)	Insulation Properties MΩ / km (20°C)	Withstand Voltage V / 5 Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*3	Thickness (mm)	Material ^*3		Thickness (mm)	Material ^*3
MASWG-CP3KK	0.75	2	19	Composite Stranding	2	6.5	57	9.8	26 or less	11 or more	2000	150/0.08	1.13	N/A	0.6	PVC	2.35	0.8	PVC	CCC / UL / CE / PSE / c-UL (6-core and above compatible with CCC / UL / c-UL only)
		3			3	7	59	8.5										0.8
		4			4	7.6	73	7.6										0.8
		6			6	7.8	85	5.9							0.4		1.95	0.8
		8			8	9.3	117	5.2										1
		12			12	10.9	170	4.1										1.2
	1.0	2	18		2	6.9	67	11.8	19.5 or less			90/0.12	1.31		0.6		2.53	0.8
		3			3	7.3	69	10.3										0.8
		4			4	8.2	90	9.2										0.9
	1.5	2	16		2	7.9	91	15.9	13.3 or less			135/0.12	1.61		0.7		3.03	0.8
		3			3	8.6	97	13.8										0.9
		4			4	9.6	127	12.3										1
	2.5	2	14		2	9.6	138	22.3	7.98 or less			100/0.18	2.08		0.8		3.7	1
		3			3	10.6	152	19.3										1.1
		4			4	11.5	191	17.2										1.1

* 1 Resizing is to be used only as a guide. Additionally, because this product has been designed with overseas standards,
the sizes shown have been replaced with an estimated section area calculated from the actual conductive structure.
For the comparison table of the AWG size and estimated section area (shown in mm²), refer to >>Click here.
*2 The value of allowable current is to be used only as a reference value and is not guaranteed.
*3 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other

Current Reduction Factor

Ambient Temperature (°C)	20	30	40	50	60
Current Reduction Factor	1.1	1	0.86	0.71	0.5

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current value 9.8 x 0.86 = 8.43 (A) when the ambient temperature is 40°C at 2-core 0.75mm²

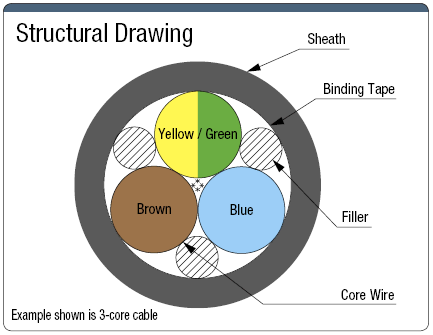

MASWG-CP3KK CCC / UL / CE / PSE Compatible Cable:Related Image

Wire Core Identification Table

Number of Core Wires	Wire Core Identification Method
2-core	Blue, Brown
3-core	Yellow / Green, Blue, Brown
4-core	Yellow / Green, Black, Brown, Gray
6-core or more	Numbers 1, 2, 3, 4, 5, 6...... are consecutively printed on the surface of the white insulator (one of the cores will be yellow / green.)

: 30; 45; 60

Part Number
MASWG-CP3KK-0.75-2-55
MASWG-CP3KK-0.75-3-22
MASWG-CP3KK-0.75-3-27
MASWG-CP3KK-0.75-3-44
MASWG-CP3KK-0.75-3-72
MASWG-CP3KK-0.75-4
MASWG-CP3KK-0.75-4-14
MASWG-CP3KK-0.75-4-83
MASWG-CP3KK-0.75-4-89
MASWG-CP3KK-0.75-6-97
MASWG-CP3KK-0.75-8-14
MASWG-CP3KK-0.75-8-55
MASWG-CP3KK-0.75-12-1
MASWG-CP3KK-0.75-12-2
MASWG-CP3KK-0.75-12-3
MASWG-CP3KK-0.75-12-4
MASWG-CP3KK-0.75-12-5
MASWG-CP3KK-0.75-12-6
MASWG-CP3KK-0.75-12-7
MASWG-CP3KK-0.75-12-8
MASWG-CP3KK-0.75-12-9
MASWG-CP3KK-0.75-12-10
MASWG-CP3KK-0.75-12-11
MASWG-CP3KK-0.75-12-12
MASWG-CP3KK-0.75-12-13
MASWG-CP3KK-0.75-12-14
MASWG-CP3KK-0.75-12-15
MASWG-CP3KK-0.75-12-16
MASWG-CP3KK-0.75-12-17
MASWG-CP3KK-0.75-12-18
MASWG-CP3KK-0.75-12-19
MASWG-CP3KK-0.75-12-20
MASWG-CP3KK-0.75-12-21
MASWG-CP3KK-0.75-12-22
MASWG-CP3KK-0.75-12-23
MASWG-CP3KK-0.75-12-24
MASWG-CP3KK-0.75-12-25
MASWG-CP3KK-0.75-12-26
MASWG-CP3KK-0.75-12-27
MASWG-CP3KK-0.75-12-28
MASWG-CP3KK-0.75-12-29
MASWG-CP3KK-0.75-12-30
MASWG-CP3KK-0.75-12-31
MASWG-CP3KK-0.75-12-32
MASWG-CP3KK-0.75-12-33
MASWG-CP3KK-0.75-12-34
MASWG-CP3KK-0.75-12-35
MASWG-CP3KK-0.75-12-36
MASWG-CP3KK-0.75-12-37
MASWG-CP3KK-0.75-12-38
MASWG-CP3KK-0.75-12-39
MASWG-CP3KK-0.75-12-40
MASWG-CP3KK-0.75-12-41
MASWG-CP3KK-0.75-12-42
MASWG-CP3KK-0.75-12-43
MASWG-CP3KK-0.75-12-44
MASWG-CP3KK-0.75-12-45
MASWG-CP3KK-0.75-12-46
MASWG-CP3KK-0.75-12-47
MASWG-CP3KK-0.75-12-48

Standard Unit Price	Minimum order quantity	Days to Ship	Overall Length (m)	Conductor Cross Section (mm²)	AWG size (AWG)	Number Of Cores (Core)	Finished outer diameter (mm)
MYR 420.35	1 Piece(s)	2 Day(s) or more	55	0.75	19	2	6.5
MYR 226.05	1 Piece(s)	2 Day(s) or more	22	0.75	19	3	7
MYR 277.43	1 Piece(s)	2 Day(s) or more	27	0.75	19	3	7
MYR 452.11	1 Piece(s)	2 Day(s) or more	44	0.75	19	3	7
MYR 690.91	1 Piece(s)	2 Day(s) or more	72	0.75	19	3	7
MYR 14.13	100 Piece(s)	2 Day(s) or more	-	0.75	19	4	7.6
MYR 147.41	1 Piece(s)	2 Day(s) or more	14	0.75	19	4	7.6
MYR 796.47	1 Piece(s)	2 Day(s) or more	83	0.75	19	4	7.6
MYR 854.04	1 Piece(s)	2 Day(s) or more	89	0.75	19	4	7.6
MYR 1,375.62	1 Piece(s)	2 Day(s) or more	97	0.75	19	6	7.8
MYR 322.19	1 Piece(s)	2 Day(s) or more	14	0.75	19	8	9.3
MYR 1,106.94	1 Piece(s)	2 Day(s) or more	55	0.75	19	8	9.3
MYR 63.17	1 Piece(s)	2 Day(s) or more	1	0.75	19	12	10.9
MYR 97.96	1 Piece(s)	2 Day(s) or more	2	0.75	19	12	10.9
MYR 126.36	1 Piece(s)	2 Day(s) or more	3	0.75	19	12	10.9
MYR 162.30	1 Piece(s)	2 Day(s) or more	4	0.75	19	12	10.9
MYR 194.47	1 Piece(s)	2 Day(s) or more	5	0.75	19	12	10.9
MYR 226.64	1 Piece(s)	2 Day(s) or more	6	0.75	19	12	10.9
MYR 258.81	1 Piece(s)	2 Day(s) or more	7	0.75	19	12	10.9
MYR 290.99	1 Piece(s)	2 Day(s) or more	8	0.75	19	12	10.9
MYR 323.15	1 Piece(s)	2 Day(s) or more	9	0.75	19	12	10.9
MYR 349.02	1 Piece(s)	2 Day(s) or more	10	0.75	19	12	10.9
MYR 383.92	1 Piece(s)	2 Day(s) or more	11	0.75	19	12	10.9
MYR 418.82	1 Piece(s)	2 Day(s) or more	12	0.75	19	12	10.9
MYR 451.84	1 Piece(s)	2 Day(s) or more	13	0.75	19	12	10.9
MYR 484.01	1 Piece(s)	2 Day(s) or more	14	0.75	19	12	10.9
MYR 516.18	1 Piece(s)	2 Day(s) or more	15	0.75	19	12	10.9
MYR 548.35	1 Piece(s)	2 Day(s) or more	16	0.75	19	12	10.9
MYR 580.53	1 Piece(s)	2 Day(s) or more	17	0.75	19	12	10.9
MYR 612.69	1 Piece(s)	2 Day(s) or more	18	0.75	19	12	10.9
MYR 644.87	1 Piece(s)	2 Day(s) or more	19	0.75	19	12	10.9
MYR 653.89	1 Piece(s)	2 Day(s) or more	20	0.75	19	12	10.9
MYR 686.58	1 Piece(s)	2 Day(s) or more	21	0.75	19	12	10.9
MYR 719.28	1 Piece(s)	2 Day(s) or more	22	0.75	19	12	10.9
MYR 751.96	1 Piece(s)	2 Day(s) or more	23	0.75	19	12	10.9
MYR 784.66	1 Piece(s)	2 Day(s) or more	24	0.75	19	12	10.9
MYR 817.35	1 Piece(s)	2 Day(s) or more	25	0.75	19	12	10.9
MYR 850.05	1 Piece(s)	2 Day(s) or more	26	0.75	19	12	10.9
MYR 882.75	1 Piece(s)	2 Day(s) or more	27	0.75	19	12	10.9
MYR 915.44	1 Piece(s)	2 Day(s) or more	28	0.75	19	12	10.9
MYR 948.14	1 Piece(s)	2 Day(s) or more	29	0.75	19	12	10.9
MYR 980.83	1 Piece(s)	2 Day(s) or more	30	0.75	19	12	10.9
MYR 1,013.53	1 Piece(s)	2 Day(s) or more	31	0.75	19	12	10.9
MYR 1,046.21	1 Piece(s)	2 Day(s) or more	32	0.75	19	12	10.9
MYR 1,078.91	1 Piece(s)	2 Day(s) or more	33	0.75	19	12	10.9
MYR 1,111.60	1 Piece(s)	2 Day(s) or more	34	0.75	19	12	10.9
MYR 1,144.30	1 Piece(s)	2 Day(s) or more	35	0.75	19	12	10.9
MYR 1,177.00	1 Piece(s)	2 Day(s) or more	36	0.75	19	12	10.9
MYR 1,209.69	1 Piece(s)	2 Day(s) or more	37	0.75	19	12	10.9
MYR 1,242.39	1 Piece(s)	2 Day(s) or more	38	0.75	19	12	10.9
MYR 1,275.08	1 Piece(s)	2 Day(s) or more	39	0.75	19	12	10.9
MYR 1,307.78	1 Piece(s)	2 Day(s) or more	40	0.75	19	12	10.9
MYR 1,340.46	1 Piece(s)	2 Day(s) or more	41	0.75	19	12	10.9
MYR 1,373.16	1 Piece(s)	2 Day(s) or more	42	0.75	19	12	10.9
MYR 1,405.85	1 Piece(s)	2 Day(s) or more	43	0.75	19	12	10.9
MYR 1,438.55	1 Piece(s)	2 Day(s) or more	44	0.75	19	12	10.9
MYR 1,471.25	1 Piece(s)	2 Day(s) or more	45	0.75	19	12	10.9
MYR 1,503.94	1 Piece(s)	2 Day(s) or more	46	0.75	19	12	10.9
MYR 1,536.64	1 Piece(s)	2 Day(s) or more	47	0.75	19	12	10.9
MYR 1,569.33	1 Piece(s)	2 Day(s) or more	48	0.75	19	12	10.9

Basic Information

Rated Voltage	CE300/500V	Shield	None	Representative Standard	PSE / UL / CE / CCC
Sheath (outer coating) color	Black	Sheath (outer coating) material	PVC	Insulation body materials	PVC
Power supply/signal	For power supply
