NAVC UL Standard

MISUMI_Test

150 V Signal Cable with small diameter specification at a low price

VW-1
ULAWM
Oil-Resistant
Strand Wire
Twisted Pair
Small Diameter
150 V

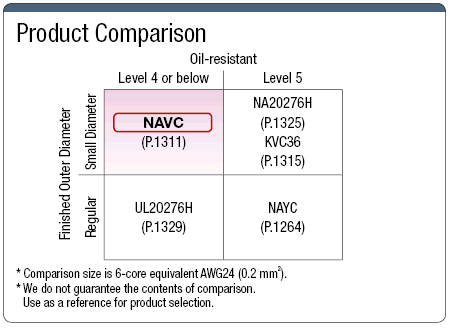

● It has a smaller outer diameter than the 300V rated signal cable.

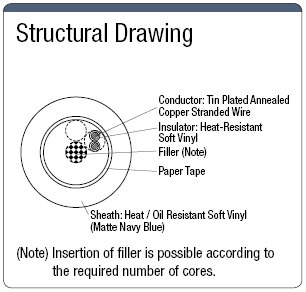

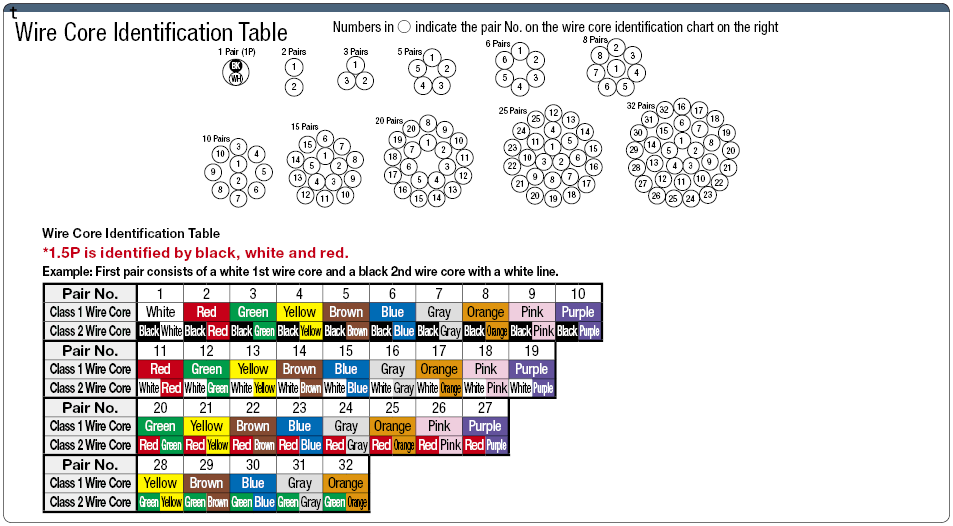

· Refer to the wire core identification table.
· AWG25 1.5P is not a twisted pair.
· This product is compatible with "UL Traceability Program / Processed Wire." (c-UL is not compatible)
* For cables in stock, please keep in mind that because we cut them to the specified size, they cannot be canceled or returned.
* All unit prices are per meter.
Unit Price Calculation Method
[Formula: Last digits of model number (m) x unit price per meter above]
* Color and softness may vary slightly due to manufacturer changes.

The Electrical Appliance and Material Safety Law certificate has not been obtained.

Part Number

Configured Part Number is shown.

Product specification
Part Numbers

Specifications

Model Number	AWG Size	Number of Pairs ^*4 1P = 2 Core (1PS = 2 Core)	Total Length ^*3 or Specified Length
NAVC	27 (Marked on Cable AWG26 )	1PS	1 ~ 100 (Specify 1 m Increment) / 500 / 1000
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		15P
		20P
	25	1PS
		1P
		1.5P (3-Core)
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		15P
		20P
		25P
		32P
	23	1PS
		1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		15P
		20P
	21	1P
		2P
		3P
		4P
		5P
		6P
		7P
		8P
		10P
		15P
		20P

Be sure to read the following precautions when you place an order.

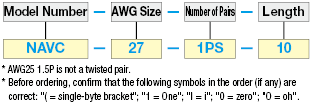

* Length in "m" is included in our model numbers. Always specify quantity as number of units, not as meters.
*1 Stock products are indicated with T or A in the price column at right.
*2 All unit prices above are per meter.
Unit Price Calculation Method [Formula: Last digits of model number (m) x unit price per meter above]
*3 Please note that when ordering 1000 m and 500 m, the order will be delivered as 100 m windings (we cannot accept orders for single cables).
*4 Check the indications for number of cores, pair number, core / pair number, and pair number / core when ordering. (Check the Specification Table for number of wire cores) 1P (1PS) is "x 2-core".

More Information

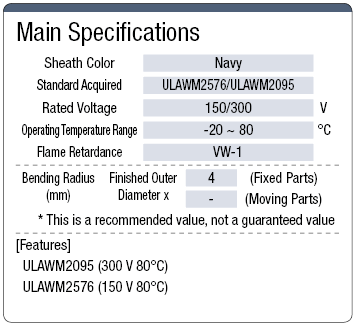

Specifications

In terms of cable marking, AWG27 shows AWG26.

Model Number	AWG Size	Number of Pairs 1P = 2 Cores (1PS = 2-Core) ^*1	Estimated Section Area (mm²) ^{* 2}	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*6 Outer Diameter (mm)	Approximate Mass kg/km	Electrical Properties				Conductor			Insulation		Wire Core Outer Diameter Approx. (mm)	Sheath		Specification	Sample Provided^{* 5}
Model Number	AWG Size	Number of Pairs 1P = 2 Cores (1PS = 2-Core) ^*1	Estimated Section Area (mm²) ^{* 2}	Twisted Structure (See Figure)	Number of Wire Cores	Finished ^*6 Outer Diameter (mm)	Approximate Mass kg/km	Allowable Current A (30°C)^{* 3}	Conductor Resistance Ω / km (20°C)	Insulation Properties MΩkm (20°C)	Withstand Voltage V / Min	Structure Strands / mm	Outer Diameter Approx. (mm)	Plating ^*4	Thickness (mm)	Material ^*4	Wire Core Outer Diameter Approx. (mm)	Thickness (mm)	Material ^*4	Specification	Sample Provided^{* 5}
NAVC	27	1PS	0.12	Twisted Pair	2	2.9	10	3.7	143 or less	10 or more	1500	7/0.16	0.48	Tin	0.25	PVC	0.98	0.42	PVC	ULAWM2095	◎
		2P			4	4.7	23	2.8	146 or less									0.85		ULAWM2576	◎
		3P			6	5.1	29	2.4													◎
		4P			8	5.7	36	2.1													◎
		5P			10	6.1	42	1.9													◎
		6P			12	6.6	49	1.6													◎
		7P			14	6.6	52	1.6													◎
		8P			16	7.3	60	1.4													◎
		10P			20	8.3	72	1.4													◎
		15P			30	9.4	99	1.2													◎
		20P			40	10.4	127	1.1													◎
	25	1PS	0.2		2	3.1	12	4.3	113 or less	10 or more	1500	7/0.18	0.54		0.255		1.05	0.45		ULAWM2095	◎
		1P			2	3.9	18	4.3										0.85		ULAWM2576	◎
		1.5P (twisted core)			3	4.1	21	3.8													◎
		2P			4	5.1	26	3.3	115 or less												◎
		3P			6	5.3	33	2.8													◎
		4P			8	5.8	40	2.5													◎
		5P			10	6.2	48	2.3													◎
		6P			12	7	57	1.9													◎
		7P			14	7	60	1.9													◎
		8P			16	7.6	69	1.7													◎
		10P			20	8.4	81	1.7													◎
		15P			30	9.7	114	1.4													◎
		20P			40	10.9	147	1.2													◎
		25P			50	11.7	174	1.1													◎
		32P			64	13.2	218	0.9													◎
	23	1PS	0.3		2	3.6	17	6.3	65.8 or less	10 or more	1500	12/0.18	0.7		0.3		1.3	0.45		ULAWM2095	◎
		1P			2	4.4	25	6.3	67.1 or less									0.85		ULAWM2576	◎
		2P			4	5.7	35	4.9													◎
		3P			6	6.5	47	4.1													◎
		4P			8	6.8	57	3.6													◎
		5P			10	7.4	69	3.4													◎
		6P			12	8.3	83	2.8													◎
		7P			14	8.3	89	2.8													◎
		8P			16	8.8	102	2.5													◎
		10P			20	10	121	2.5													◎
		15P			30	11.7	172	2.1													◎
		20P			40	13.5	226	1.8													◎
	21	1P	0.5		2	4.8	31	8.8	39.5 or less	10 or more	1500	20/0.18	0.9		0.3		1.5	0.85		ULAWM2576	◎
		2P			4	6.9	57	6.7	40.3 or less												◎
		3P			6	7.3	71	5.7													◎
		4P			8	8	81	5.0													◎
		5P			10	8.7	100	4.6													◎
		6P			12	9.5	119	3.9													◎
		7P			14	9.5	126	3.9													◎
		8P			16	10.2	147	3.5													◎
		10P			20	12	178	3.5													◎
		15P			30	13.8	254	2.9													◎
		20P			40	15.3	331	2.5													◎

*1 Please note that when the indicated Core / Pair is 1P (1PS), the number of wire cores will be "x 2-core".
*2 The size conversion is for reference only. Refer to the comparison table on >>Click here for details.
*3 The value of allowable current is to be used only as a reference value and is not guaranteed.
*4 How to View Materials
[Plating] Tin... Tin Plated Annealed Copper Wire
[Materials] PVC... Polyvinyl Chloride; PE... Polyethylene-based Material;
P... Polyester-based Material; Fluorine... Various Fluorine Resins; *... Other
*5 For the outer diameter size of cables, wire sheath (coat), etc., refer to "Finished Outer Diameter" in the table above.

Current Reduction Factor

Ambient Temperature (°C)	30	40	50	60	70	80	90	100
Current Reduction Factor	1.00	0.90	0.75	0.73	0.65	0.56	0.44	0.27

Allowable current value indicates the calculated value of 1 cable laid aboveground in ambient temperature of 30°C, and is not a guaranteed value.
If the ambient temperature is 30 °C or above, the above current reduction factor is multiplied by the allowable current.
(Example) Allowable current at AWG27 1PS core when the ambient temperature is 40°C
3.7 x 0.9 = 3.33 (A)

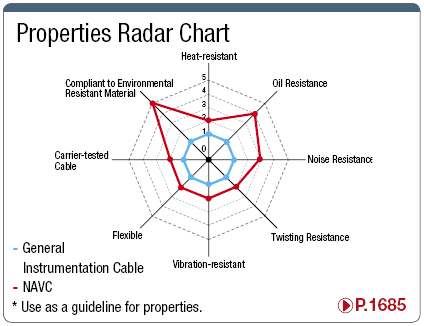

NAVC UL Standard:Related Image

: 30; 45; 60

Part Number
NAVC-21-1P-3
NAVC-21-1P-64
NAVC-21-2P-18
NAVC-21-2P-34
NAVC-21-2P-70
NAVC-21-2P-84
NAVC-21-2P-100
NAVC-21-3P-9
NAVC-21-3P-64
NAVC-21-4P-13
NAVC-21-4P-24
NAVC-21-4P-50
NAVC-21-4P-68
NAVC-21-4P-69
NAVC-21-4P-75
NAVC-21-5P-23
NAVC-21-5P-31
NAVC-21-5P-34
NAVC-21-5P-42
NAVC-21-5P-43
NAVC-21-5P-82
NAVC-21-5P-84
NAVC-21-5P-89
NAVC-21-6P-77
NAVC-21-8P-1
NAVC-23-1P-6
NAVC-23-1P-17
NAVC-23-1P-45
NAVC-23-1P-94
NAVC-23-1PS-25
NAVC-23-1PS-72
NAVC-23-1PS-95
NAVC-23-1PS-500
NAVC-23-2P-8
NAVC-23-2P-14
NAVC-23-2P-20
NAVC-23-2P-22
NAVC-23-2P-43
NAVC-23-2P-65
NAVC-23-2P-75
NAVC-23-3P-77
NAVC-23-3P-87
NAVC-23-3P-97
NAVC-23-4P-64
NAVC-23-4P-73
NAVC-23-4P-84
NAVC-23-5P-2
NAVC-23-5P-10
NAVC-23-5P-16
NAVC-23-5P-21
NAVC-23-5P-80
NAVC-23-5P-87
NAVC-23-5P-88
NAVC-23-6P-62
NAVC-23-6P-67
NAVC-23-6P-68
NAVC-23-7P-100
NAVC-23-8P-78
NAVC-23-10P-10
NAVC-23-10P-12

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Overall Length (m)	Conductor Cross Section (mm²)	AWG size (AWG)	Logarithm	Finished outer diameter (mm)	Other properties
MYR 43.56	1 Piece(s)	2 Day(s) or more	-	3	0.5	21	1P	4.8	Pliability
MYR 429.35	1 Piece(s)	2 Day(s) or more	-	64	0.5	21	1P	4.8	Pliability
MYR 272.86	1 Piece(s)	2 Day(s) or more	-	18	0.5	21	2P	6.9	Pliability
MYR 452.94	1 Piece(s)	2 Day(s) or more	-	34	0.5	21	2P	6.9	Pliability
MYR 896.93	1 Piece(s)	2 Day(s) or more	-	70	0.5	21	2P	6.9	Pliability
MYR 1,069.60	1 Piece(s)	2 Day(s) or more	-	84	0.5	21	2P	6.9	Pliability
-	1 Piece(s)	2 Day(s) or more	-	100	0.5	21	2P	6.9	Pliability
MYR 218.01	1 Piece(s)	2 Day(s) or more	-	9	0.5	21	3P	7.3	Pliability
MYR 1,384.55	1 Piece(s)	3 Day(s) or more	-	64	0.5	21	3P	7.3	Pliability
MYR 284.89	1 Piece(s)	2 Day(s) or more	10	13	0.5	21	4P	8	Pliability
MYR 497.51	1 Piece(s)	2 Day(s) or more	-	24	0.5	21	4P	8	Pliability
MYR 1,000.05	1 Piece(s)	2 Day(s) or more	-	50	0.5	21	4P	8	Pliability
MYR 1,347.98	1 Piece(s)	2 Day(s) or more	-	68	0.5	21	4P	8	Pliability
MYR 1,367.30	1 Piece(s)	2 Day(s) or more	10	69	0.5	21	4P	8	Pliability
MYR 1,483.28	1 Piece(s)	2 Day(s) or more	10	75	0.5	21	4P	8	Pliability
MYR 518.75	1 Piece(s)	2 Day(s) or more	-	23	0.5	21	5P	8.7	Pliability
MYR 687.51	1 Piece(s)	2 Day(s) or more	-	31	0.5	21	5P	8.7	Pliability
MYR 750.79	1 Piece(s)	2 Day(s) or more	-	34	0.5	21	5P	8.7	Pliability
MYR 919.53	1 Piece(s)	2 Day(s) or more	-	42	0.5	21	5P	8.7	Pliability
MYR 940.63	1 Piece(s)	2 Day(s) or more	-	43	0.5	21	5P	8.7	Pliability
MYR 1,763.26	1 Piece(s)	2 Day(s) or more	-	82	0.5	21	5P	8.7	Pliability
MYR 1,805.44	1 Piece(s)	2 Day(s) or more	-	84	0.5	21	5P	8.7	Pliability
MYR 1,910.92	1 Piece(s)	2 Day(s) or more	-	89	0.5	21	5P	8.7	Pliability
MYR 2,095.76	1 Piece(s)	2 Day(s) or more	-	77	0.5	21	6P	9.5	Pliability
MYR 66.43	1 Piece(s)	2 Day(s) or more	-	1	0.5	21	8P	10.2	Pliability
MYR 51.20	1 Piece(s)	2 Day(s) or more	-	6	0.3	23	1P	4.4	Pliability
MYR 115.83	1 Piece(s)	2 Day(s) or more	-	17	0.3	23	1P	4.4	Pliability
MYR 217.82	1 Piece(s)	2 Day(s) or more	-	45	0.3	23	1P	4.4	Pliability
MYR 447.01	1 Piece(s)	2 Day(s) or more	-	94	0.3	23	1P	4.4	Pliability
MYR 118.89	1 Piece(s)	2 Day(s) or more	-	25	0.3	23	1P	3.6	Pliability
MYR 336.28	1 Piece(s)	2 Day(s) or more	-	72	0.3	23	1P	3.6	Pliability
MYR 443.71	1 Piece(s)	2 Day(s) or more	-	95	0.3	23	1P	3.6	Pliability
MYR 1,571.03	1 Piece(s)	2 Day(s) or more	-	500	-	23	1PS.	3.6	-
MYR 89.11	1 Piece(s)	2 Day(s) or more	-	8	0.3	23	2P	5.7	Pliability
MYR 107.00	1 Piece(s)	2 Day(s) or more	-	14	0.3	23	2P	5.7	Pliability
MYR 152.85	1 Piece(s)	2 Day(s) or more	-	20	0.3	23	2P	5.7	Pliability
MYR 168.14	1 Piece(s)	2 Day(s) or more	-	22	0.3	23	2P	5.7	Pliability
MYR 328.64	1 Piece(s)	2 Day(s) or more	-	43	0.3	23	2P	5.7	Pliability
MYR 484.50	1 Piece(s)	2 Day(s) or more	-	65	0.3	23	2P	5.7	Pliability
MYR 553.86	1 Piece(s)	2 Day(s) or more	-	75	0.3	23	2P	5.7	Pliability
MYR 810.81	1 Piece(s)	Quote	-	77	0.3	23	3P	6.5	Pliability
MYR 916.12	1 Piece(s)	2 Day(s) or more	-	87	0.3	23	3P	6.5	Pliability
MYR 1,021.42	1 Piece(s)	2 Day(s) or more	-	97	0.3	23	3P	6.5	Pliability
MYR 810.41	1 Piece(s)	2 Day(s) or more	-	64	0.3	23	4P	6.8	Pliability
MYR 919.63	1 Piece(s)	2 Day(s) or more	-	73	0.3	23	4P	6.8	Pliability
MYR 1,053.15	1 Piece(s)	2 Day(s) or more	-	84	0.3	23	4P	6.8	Pliability
MYR 56.81	1 Piece(s)	2 Day(s) or more	-	2	0.3	23	5P	7.4	Pliability
MYR 160.50	1 Piece(s)	2 Day(s) or more	-	10	0.3	23	5P	7.4	Pliability
MYR 248.38	1 Piece(s)	2 Day(s) or more	-	16	0.3	23	5P	7.4	Pliability
MYR 315.49	1 Piece(s)	2 Day(s) or more	-	21	0.3	23	5P	7.4	Pliability
MYR 1,107.45	1 Piece(s)	2 Day(s) or more	-	80	0.3	23	5P	7.4	Pliability
MYR 1,201.41	1 Piece(s)	2 Day(s) or more	-	87	0.3	23	5P	7.4	Pliability
MYR 1,214.84	1 Piece(s)	2 Day(s) or more	-	88	0.3	23	5P	7.4	Pliability
MYR 1,145.46	1 Piece(s)	2 Day(s) or more	-	62	0.3	23	6P	8.3	Pliability
MYR 1,235.11	1 Piece(s)	2 Day(s) or more	-	67	0.3	23	6P	8.3	Pliability
MYR 1,253.04	1 Piece(s)	2 Day(s) or more	-	68	0.3	23	6P	8.3	Pliability
-	1 Piece(s)	2 Day(s) or more	-	100	0.3	23	7P	8.3	Pliability
MYR 1,706.02	1 Piece(s)	2 Day(s) or more	-	78	0.3	23	8P	8.8	Pliability
MYR 300.62	1 Piece(s)	2 Day(s) or more	-	10	0.3	23	10P	10	Pliability
MYR 360.74	1 Piece(s)	2 Day(s) or more	-	12	0.3	23	10P	10	Pliability

Basic Information

Rated Voltage	150V	Shield	None	Properties	Oil resistance
Representative Standard	UL	Sheath (outer coating) color	Navy color	Sheath (outer coating) material	PVC
Insulation body materials	PVC	Power supply/signal	For signals

Configure

110 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Overall Length(m)
1

2

3

4

5

6

8

9

10

11

12

13

14

16

17

18

20

21

22

23

24

25

28

29

31

33

34

35

36

41

42

43

44

45

49

50

56

57

60

62

63

64

65

67

68

69

70

72

73

75

76

77

78

79

80

81

82

84

85

86

87

88

89

90

94

95

97

100

500
Clear
Conductor Cross Section(mm²)
0.12

0.2

0.3

0.5
Clear
AWG size(AWG)
21

23

25

27
Clear
Logarithm
1P

1PS.

2P

3P

4P

5P

6P

7P

8P

10P
Clear
Finished outer diameter(mm)
2.9

3.6

3.9

4.4

4.7

4.8

5.1

5.3

5.7

5.8

6.1

6.2

6.5

6.6

6.8

6.9

7

7.3

7.4

7.6

8

8.3

8.4

8.7

8.8

9.5

10

10.2
Clear

Days to Ship

All

2 Day(s) or Less

3 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

NAVCSB UL Standard with Shield
MISUMI_Test

Standard Price : MYR 21.77-

Days to Ship : 2 Day(s) or more
SS300 UL
MISUMI_Test

Days to Ship : 1 Day(s) or more
NA3VC UL Standard
MISUMI_Test

Standard Price : MYR 30.57-

Days to Ship : 2 Day(s) or more
NASVCTF PSE Supported Ductile Vinyl Cabtire Cable
MISUMI_Test

Standard Price : MYR 48.02-

Days to Ship : 1 Day(s) or more
NAKVVSB 100 V or less with Shield
MISUMI_Test

Standard Price : MYR 73.05-

Days to Ship : 2 Day(s) or more
KVC36 UL Standard
MISUMI_Test

Standard Price : MYR 21.27-

Days to Ship : 1 Day(s) or more
NA3VCSB UL Standard with Shield
MISUMI_Test

Standard Price : MYR 29.04-

Days to Ship : 2 Day(s) or more
NASE Series Wire Core ID for Sensor
MISUMI_Test

Standard Price : MYR 29.22-

Days to Ship : 2 Day(s) or more
KVC36 UL Standard
KURAMO ELECTRIC

Standard Price : MYR 173.79-

Days to Ship : 1 Day(s) or more
SSCL3 UL Listed (CL3) Support
MISUMI_Test

Standard Price : MYR 15.54-

Days to Ship : 2 Day(s) or more
NAMFSB 150 V UL Standard with Shield
MISUMI_Test

Days to Ship : 2 Day(s) or more
NAMF 150 V UL Standard
MISUMI_Test

Days to Ship : 2 Day(s) or more

back next

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：(60) 3 7960 8499 / FAX：(60) 3 7960 7499; 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday); Technical Inquiry

Top of the page

Payment Method

Credit Card
Bank Transfer

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

Tel: (60) 3 7890 6399

Inquiry

All Categories

Categories

Search by Application

Brands

Message from MISUMI

My Favorites

Settings

How can we improve?

NAVC UL Standard

Specifications

More Information

Basic Information

Configure

Specification/Dimensions

Overall Length(m)

Conductor Cross Section(mm²)

AWG size(AWG)

Logarithm

Finished outer diameter(mm)

Days to Ship

Specify Alterations

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

All Categories

Categories

Search by Application

Brands

Message from MISUMI

My Favorites

Settings

How can we improve?

NAVC UL Standard

Specifications

More Information

Basic Information

Configure

Specification/Dimensions

Overall Length(m)

Conductor Cross Section(mm2)

AWG size(AWG)

Logarithm

Finished outer diameter(mm)

Days to Ship

Specify Alterations

Additional Products in this Category

Customers Who Viewed This Item Also Viewed

Tech Support

Payment Method

About MISUMI

About this Website

Useful Tools

Customer Service

Social Media

MISUMI Contact 9am – 6pm (Mon – Fri) * Order cut-off time is 5pm, 9am – 1pm(Sat) * Order cut-off time is 12pm

Conductor Cross Section(mm²)
