MT Series High-Speed Steel Spiral Tap m_series_language_24687
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
[New Item] A universal tap that can accommodate a wide range of work materials from general steel to aluminum and stainless steel.
The unique edge shape suppresses the collapse of the internal thread and eliminates the trouble of tapping.
[Slide Discount] Great deals are available on the purchase of more than 5 pieces.
Part Number
Configured Part Number is shown.
m_series_wysiwyg_language_45241
| Part Number |
|---|
| MT-SPFT-M2-0.4-2.5P |
| MT-SPFT-M3-0.5-2.5P |
| MT-SPFT-M4-0.7-2.5P |
| MT-SPFT-M5-0.8-2.5P |
| MT-SPFT-M6-1-2.5P |
| MT-SPFT-M10-1.5-2.5P |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Nominal m_series_spec_item_renamed_language_509908 | Pitch, Number of Threads m_series_spec_item_renamed_language_509909 (mm) | Overall Length (L) m_series_spec_item_renamed_language_509911 (mm) | m_series_spec_item_renamed_language_509899 (m_spec_item_language_82703) | m_series_spec_item_renamed_language_509900 (φ m_spec_item_language_82704) | m_series_spec_item_renamed_language_509901 (m_spec_item_language_82705) | m_series_spec_item_renamed_language_509902 (mm m_spec_item_language_82706) | m_series_spec_item_renamed_language_509903 (m_spec_item_language_82707) | m_series_spec_item_renamed_language_509889 (mm m_spec_item_language_82693) | m_series_spec_item_renamed_language_509890 (mm m_spec_item_language_82694) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 59.99 | 1 Piece(s) | Available | 1 Day(s) | M2 | 0.4 | 40 | 9.5 | 3 | 2 | 15 | LM1 | 5 | 2.5 | |
MYR 30.17 | 1 Piece(s) | Available | 1 Day(s) | M3 | 0.5 | 46 | 11 | 4 | 3 | 18 | LM2 | 6 | 3.2 | |
MYR 29.32 | 1 Piece(s) | Available | 3 Day(s) | M4 | 0.7 | 52 | 13 | 5 | 3 | 20 | LM2 | 7 | 4 | |
MYR 39.92 | 1 Piece(s) | Available | 1 Day(s) | M5 | 0.8 | 60 | 16 | 5.5 | 3 | 25 | LM2 | 7 | 4.5 | |
MYR 42.71 | 1 Piece(s) | Available | 1 Day(s) | M6 | 1 | 62 | 19 | 6 | 3 | 28 | LM2 | 7 | 4.5 | |
MYR 69.45 | 1 Piece(s) | Available | 1 Day(s) | M10 | 1.5 | 75 | 24 | 7 | 3 | 39 | LM2 | 8 | 5.5 |
Loading...
Specifications
Model Number
MT-SPFT

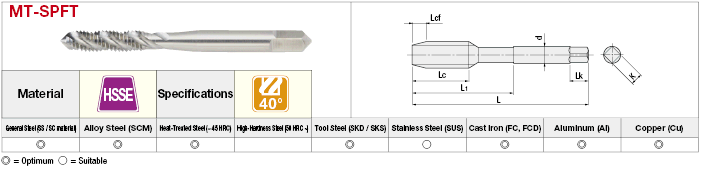

| Nominal M x P | Chamfer Lcf | Precision | Overall Length L | Thread Length Lc | Length Under Neck L1 | Shank Diameter d | No. of Grooves | Square Part Length Lk | Square Part Width K | |
| M2 | 0.4 | 2.5P | LM1 | 40 | 9.5 | 15 | 3 | 2 | 5 | 2.5 |
| M2.5 | 0.45 | 2.5P | LM1 | 44 | 9.5 | 16 | 3 | 2 | 5 | 2.5 |
| M2.6 | 0.45 | 2.5P | LM1 | 44 | 9.5 | 16 | 3 | 2 | 5 | 2.5 |
| M3 | 0.5 | 2.5P | LM2 | 46 | 11 | 18 | 4 | 3 | 6 | 3.2 |
| M4 | 0.7 | 2.5P | LM2 | 52 | 13 | 20 | 5 | 3 | 7 | 4 |
| M5 | 0.8 | 2.5P | LM2 | 60 | 16 | 25 | 5.5 | 3 | 7 | 4.5 |
| M6 | 1 | 2.5P | LM2 | 62 | 19 | 28 | 6 | 3 | 7 | 4.5 |
| M8 | 1.25 | 2.5P | LM2 | 70 | 22 | 35 | 6.2 | 3 | 8 | 5 |
| M8 | 1 | 2.5P | LM2 | 70 | 22 | 35 | 6.2 | 3 | 8 | 5 |
| M10 | 1.5 | 2.5P | LM2 | 75 | 24 | 39 | 7 | 3 | 8 | 5.5 |
| M10 | 1.25 | 2.5P | LM2 | 75 | 24 | 39 | 7 | 3 | 8 | 5.5 |
| M12 | 1.75 | 2.5P | LM2 | 82 | 29 | 42 | 8.5 | 3 | 9 | 6.5 |
| M12 | 1.5 | 2.5P | LM2 | 82 | 29 | 42 | 8.5 | 3 | 9 | 6.5 |
| M12 | 1.25 | 2.5P | LM2 | 82 | 29 | 42 | 8.5 | 3 | 9 | 6.5 |
| M14 | 2 | 2.5P | LM2 | 88 | 30 | 46 | 10.5 | 3 | 11 | 8 |
| M14 | 1.5 | 2.5P | LM2 | 88 | 30 | 46 | 10.5 | 3 | 11 | 8 |
| M16 | 2 | 2.5P | LM2 | 95 | 32 | 50 | 12.5 | 3 | 13 | 10 |
| M16 | 1.5 | 2.5P | LM2 | 95 | 32 | 50 | 12.5 | 3 | 13 | 10 |
| M20 | 2.5 | 2.5P | LM3 | 105 | 37 | 56 | 15 | 4 | 15 | 12 |
| M24 | 3 | 2.5P | LM3 | 120 | 45 | 72 | 19 | 4 | 18 | 15 |
[ ! ]For details about cutting tap accuracy LM, refer to the technical information (>>Click here).
For Cutting Conditions, Refer to >>Click here.
Technical information >>Click here m_series_wysiwyg_language_45242
More Information
● A universal tap that can accommodate a wide range of work materials from general steel to aluminum and stainless steel.
● The unique edge shape suppresses the collapse of the internal thread and eliminates the trouble of tapping. m_series_wysiwyg_language_45243
Basic Information
Specification/Dimensions
-
Nominal m_series_spec_item_renamed_language_509908
-
Pitch, Number of Threads m_series_spec_item_renamed_language_509909(mm)
-
Overall Length (L) m_series_spec_item_renamed_language_509911(mm)
-
m_series_spec_item_renamed_language_509899(m_spec_item_language_82703)
-
m_series_spec_item_renamed_language_509900(φ m_spec_item_language_82704)
-
m_series_spec_item_renamed_language_509901(m_spec_item_language_82705)
- 2
- 3
-
m_series_spec_item_renamed_language_509902(mm m_spec_item_language_82706)
-
m_series_spec_item_renamed_language_509903(m_spec_item_language_82707)
-
m_series_spec_item_renamed_language_509889(mm m_spec_item_language_82693)
-
m_series_spec_item_renamed_language_509890(mm m_spec_item_language_82694)
-
type
- MT-SPFT
Days to Ship
-
- All
- 1 Day(s) or Less
- 3 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
