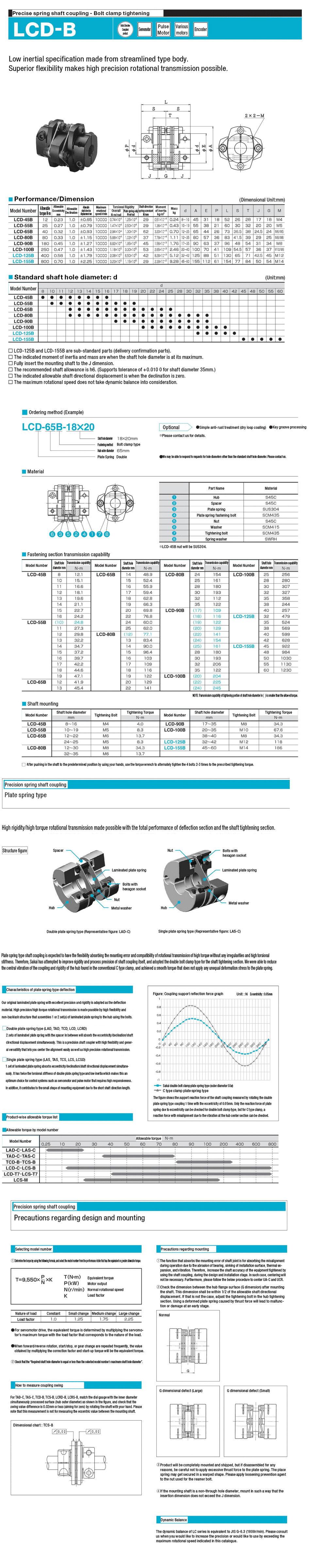

Precision Axial Fitting-Spring Type, LCD-B Series
Streamlined body with low inertia specification
[Features]
· Streamlined body with low inertia specification.
· Excellent flexibility, with high accuracy rotation possible.
Japanese Only
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| LCD-55B-10X14 |
| LCD-55B-14X16 |
| LCD-80B-22X30 |
| LCD-80B-22X35 |
| LCD-90B-19X22 |
| LCD-100B-35X35 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Allowable Torque Range (N•m) | d1(d) (Ø) | d2 (Ø) | Outer Dia. A (Ø) | Full length L (LL) (mm) | Allowable Torque (N•m) | Allowable Lateral Misalignment Range (mm) | Allowable Lateral Misalignment (mm) | Axial displacement(±) (mm) | Moment of Inertia (kg･m2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 561.28 | 1 Piece(s) | 8 Day(s) or more | 10 | 20.01~50.00 | 10 | 14 | 55 | 60 | 25 | 0.21~0.40 | 0.27 | 0.79 | 1.36X10-4 | ||
MYR 561.28 | 1 Piece(s) | 8 Day(s) or more | 10 | 20.01~50.00 | 14 | 16 | 55 | 60 | 25 | 0.21~0.40 | 0.27 | 0.79 | 1.36X10-4 | ||
MYR 707.04 | 1 Piece(s) | 8 Day(s) or more | 10 | 50.01~100.00 | 22 | 30 | 80 | 83 | 80 | 0.21~0.40 | 0.33 | 1.15 | 7.79X10-4 | ||
MYR 707.04 | 1 Piece(s) | 8 Day(s) or more | 10 | 50.01~100.00 | 22 | 35 | 80 | 83 | 80 | 0.21~0.40 | 0.33 | 1.15 | 7.79X10-4 | ||
MYR 840.68 | 1 Piece(s) | 8 Day(s) or more | 10 | 100～Less than 500 | 19 | 22 | 90 | 96 | 180 | 0.41~1.0 | 0.45 | 1.27 | 1.56X10-3 | ||
MYR 974.41 | 1 Piece(s) | 8 Day(s) or more | 10 | 100～Less than 500 | 35 | 35 | 100 | 109 | 250 | 0.41~1.0 | 0.47 | 1.43 | 2.65X10-3 |
Loading...
Basic Information
| Type | Precision Springs Shaft Fitting | Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment | Application | Standard / Servo Motor / Pulse Motor |
|---|---|---|---|---|---|
| Max. Rotational Speed Range(r/min) | 4001~10000 | Features | High torsional rigidity / High Torque / Low Inertia Moment | Body Material | S45C |
| Product Category | Coupling body | Max. Rotational Speed(r/min) | 10000 | Allowable Angular Misalignment(deg) | 1 |
| Flat Springs | SUS304 |
Specification/Dimensions
-
Allowable Torque Range(N•m)
-
d1(d)(Ø)
-
d2(Ø)
-
Outer Dia. A(Ø)
-
Full length L (LL)(mm)
-
Allowable Torque(N•m)
-
Allowable Lateral Misalignment Range(mm)
-
Allowable Lateral Misalignment(mm)
-
type
- LCD-B
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 8 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
