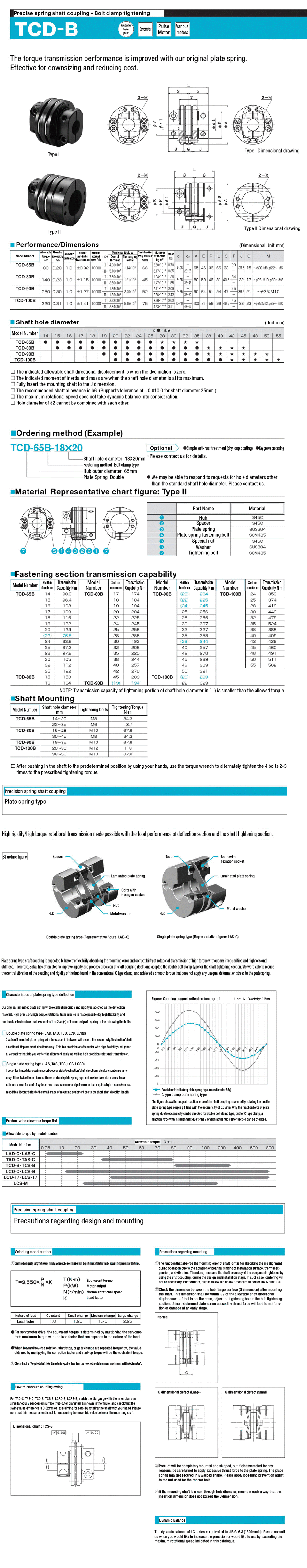

Precision Shaft Fittings - Leaf Spring Type, TCD-B Series
Compact, low price type
[Features]
· Torque transmission capability has been improved with unique leaf spring.
· Effective for downsizing and cost reduction.
Japanese Only
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| TCD-65B-18X18 |
| TCD-80B-18X32 |
| TCD-80B-22X45 |
| TCD-80B-32X38 |
| TCD-90B-20X45 |
| TCD-100B-24X25 |
| TCD-100B-30X32 |
| TCD-100B-30X38 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Allowable Torque Range (N•m) | d1(d) (Ø) | d2 (Ø) | Outer Dia. A (Ø) | Full length L (LL) (mm) | Allowable Torque (N•m) | Allowable Lateral Misalignment Range (mm) | Allowable Lateral Misalignment (mm) | Axial displacement(±) (mm) | Moment of Inertia (kg･m2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 656.30 | 1 Piece(s) | 13 Day(s) or more | 10 | 50.01~100.00 | 18 | 18 | 65 | 66 | 80 | 0.02~0.2 | 0.2 | 0.92 | 5.17X10-4 | ||
MYR 849.38 | 1 Piece(s) | 13 Day(s) or more | 10 | 100～Less than 500 | 18 | 32 | 80 | 81 | 140 | 0.21~0.40 | 0.23 | 1.15 | 1.47X10-3 | ||
MYR 857.47 | 1 Piece(s) | 46 Day(s) or more | - | 100～Less than 500 | 22 | 45 | 80 | 81 | 140 | 0.21~0.40 | 0.23 | 1.15 | 1.47X10-3 | ||
MYR 856.85 | 1 Piece(s) | 13 Day(s) or more | 10 | 100～Less than 500 | 32 | 38 | 80 | 81 | 140 | 0.21~0.40 | 0.23 | 1.15 | 1.47X10-3 | ||
MYR 1,016.12 | 1 Piece(s) | 13 Day(s) or more | 10 | 100～Less than 500 | 20 | 45 | 90 | 94 | 250 | 0.21~0.40 | 0.3 | 1.27 | 2.86X10-3 | ||
MYR 1,175.26 | 1 Piece(s) | 46 Day(s) or more | 10 | 100～Less than 500 | 24 | 25 | 100 | 99 | 320 | 0.21~0.40 | 0.31 | 1.41 | 4.53X10-3 | ||
MYR 1,162.19 | 1 Piece(s) | 13 Day(s) or more | 10 | 100～Less than 500 | 30 | 32 | 100 | 99 | 320 | 0.21~0.40 | 0.31 | 1.41 | 4.53X10-3 | ||
MYR 1,162.19 | 1 Piece(s) | 13 Day(s) or more | 10 | 100～Less than 500 | 30 | 38 | 100 | 99 | 320 | 0.21~0.40 | 0.31 | 1.41 | 4.53X10-3 |
Loading...
Basic Information
| Type | Precision Springs Shaft Fitting | Allowable Misalignment | Angular Misalignment / Eccentricity / Axial Misalignment | Application | Standard / Servo Motor / Pulse Motor |
|---|---|---|---|---|---|
| Max. Rotational Speed Range(r/min) | 4001~10000 | Features | High Torque / High accuracy | Body Material | S45C |
| Product Category | Coupling body | Max. Rotational Speed(r/min) | 10000 | Allowable Angular Misalignment(deg) | 1 |
| Flat Springs | SUS304 |
Specification/Dimensions
-
Allowable Torque Range(N•m)
-
d1(d)(Ø)
-
d2(Ø)
-
Outer Dia. A(Ø)
-
Full length L (LL)(mm)
-
Allowable Torque(N•m)
-
Allowable Lateral Misalignment Range(mm)
-
Allowable Lateral Misalignment(mm)
-
type
- TCD-B
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 13 Day(s) or Less
- 46 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
