Stainless-Steel Waterproof Handle A-1140
[Features]
· Lock comes standard with the TAK60, a new type of reversible key with an easy to use dust-proof shutter (A-1140-TAK60).
· Waterproof type (O ring, packing is used).
· Waterproof standard IP × 3 equivalent.
· Fire resistant, heat resistant, saltwater resistant, and acid resistant.
· Left and right combination
Part Number
Configured Part Number is shown.
A-1140-2-1-0200
Left And Right Type Handle

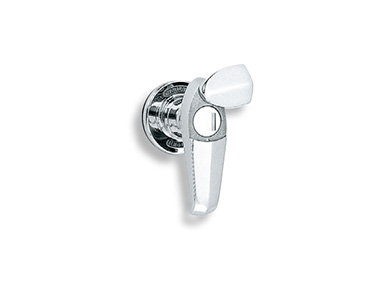

A-1140-1-1 external appearance
A-1140-3-1 external appearance
A-1140-6-1 external appearance

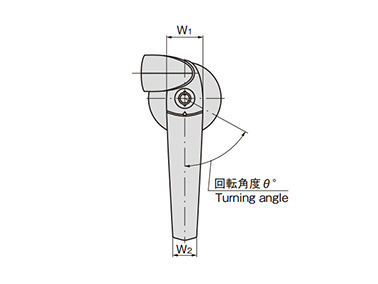

A-1140 dimensional drawing A
A-1140 dimensional drawing B
A-1140 dimensional drawing C

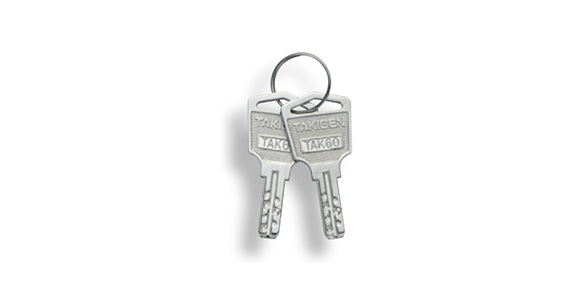

Key No. TAK60 external appearance
Key No. 0200 external appearance

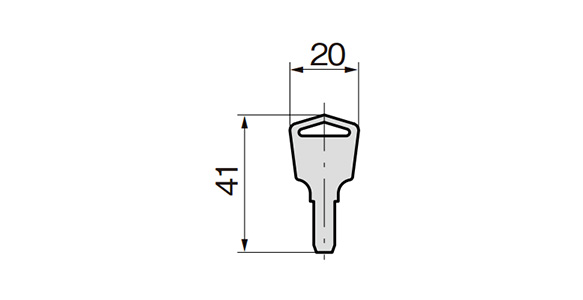

Key No. TAK60 dimensional drawing

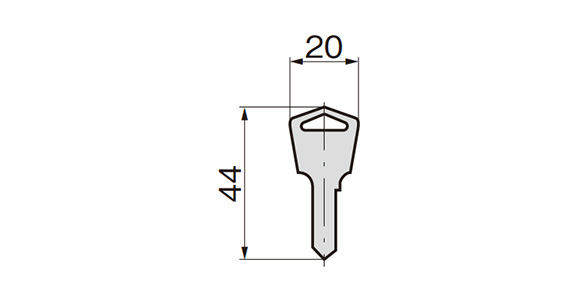

Key No. 0200 dimensional drawing
| Product No. | Key No. | L | W1 | W2 | □W3 | (W4) | H1 | H2 | H3 | H4 | H5 | (H6) | P1 | P2 | N | ød | (M) | øD | θ° | Max. Applicable Panel Thickness | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-1140-1-1 | 2002 | 152 | 30 | 16 | 10 | 41 | 50 | 6 | 22 | 22.5 | 5 | 26 | 40 | - | 2 | 8 | M22 | 60 | 60 | 9.8 | 530 |
| A-1140-1-1-TAK60 | TAK60 | ||||||||||||||||||||
| A-1140-1-1-0200 | 0200 | ||||||||||||||||||||
| A-1140-1-2 | Without lock | ||||||||||||||||||||
| A-1140-2-1 | 2002 | 120 | 24 | 14 | 8 | 32 | 43 | 5 | 12 | 14.8 | 3 | 24 | 32 | 7 | 48 | 65 | 8.8 | 340 | |||
| A-1140-2-1-TAK60 | TAK60 | ||||||||||||||||||||
| A-1140-2-1-0200 | 0200 | ||||||||||||||||||||
| A-1140-2-2 | Without lock | ||||||||||||||||||||
| A-1140-3-1 | 2002 | 102 | 23 | 13 | 38.5 | 9 | 21.5 | 45 | 260 | ||||||||||||
| A-1140-3-1-TAK60 | TAK60 | ||||||||||||||||||||
| A-1140-3-1-0200 | 0200 | ||||||||||||||||||||
| A-1140-3-2 | Without lock | ||||||||||||||||||||
| A-1140-4-1-TAK60 | TAK60 | 90 | 20 | 13 | 27 | 42 | 5 | 12.5 | 11.3 | 25 | - | 15 | 1 | 3 | M18 | 38 | 60 | 4 | 210 | ||
| A-1140-4-1-0200 | 0200 | ||||||||||||||||||||
| A-1140-5-1-TAK60 | TAK60 | 80 | 200 | ||||||||||||||||||
| A-1140-5-1-0200 | 0200 | ||||||||||||||||||||
| A-1140-6-1-TAK60 | TAK60 | 70 | 196 | ||||||||||||||||||
| A-1140-6-1-0200 | 0200 |
| Part Number |
|---|
| A-1140-2-1-0200 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 449.52 | 1 Piece(s) | 1 Day(s) |
Loading...
Basic Information
| Application | Outdoor cubicle, Switchboard, Environment equipment, Food equipment, Measuring equipment | Types | Handle body | Material | Stainless Steel Casting (SUS316) |
|---|---|---|---|---|---|
| Finish | Mirror Surface Buff Polishing | Selfishly | Left/Right Combination Type | Number of Keys | 0200 |
| Full Length(mm) | 120 | Overall width(mm) | 48 | Full height(mm) | 60.8 |
| Plate Thickness(mm) | Up to 8.8 | Product Code | 03574 | Note | The clasp is sold separately |
Please check the type/dimensions/specifications of the part A-1140-2-1-0200 in the Stainless-Steel Waterproof Handle A-1140 series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
