Waterproof Color Lock Handle A-310
[Features]
· Difficult to unlock the pin tumbler system with a built-in pin without a special handle.
· Waterproof type (O ring, packing is used).
· Left and right combination
Part Number
Configured Part Number is shown.
Left And Right Type Handle
A-310-1 external appearance
A-310-3 external appearance

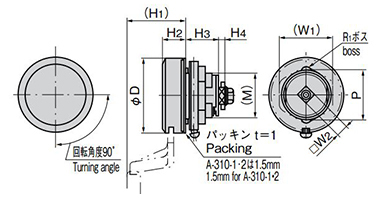

A-310 dimensional drawing

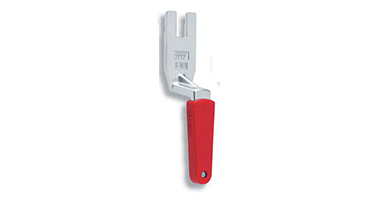

A-310-1H/2H external appearance

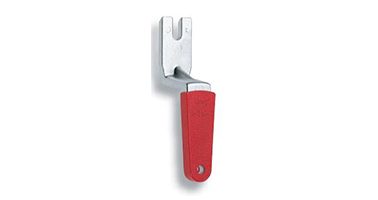

A-310-3H external appearance

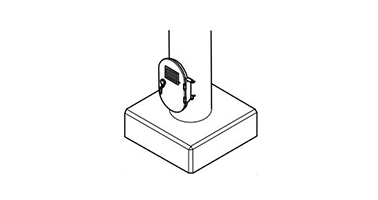

A-310 application example
| Product No. | (W1) | □W2 | (H1) | H2 | H3 | H4 | P | øD | ød | R1 | R2 | (M) | Max. Applicable Panel Thickness | Product Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-310-1 | 42 | 10 | 48.5 | 18.5 | 26.5 | 4 | 38.5 | 62 | 40.5 | 4 | 4.5 | M36 | 7 | 420 |
| A-310-2 | 32.5 | 8 | 49 | 19.5 | 27 | 4 | 30 | 50 | 32.5 | 4 | 4.5 | M30 | 7 | 300 |
| A-310-3 | 30 | 8 | 38.5 | 14.5 | 14.5 | 4 | 24 | 34 | 24.5 | 2 | 2.5 | M24 | 2 | 120 |
| A-310-4 | 32 | 8 | 34 | 13 | 13 | 2 | - | 30 | - | - | - | M22 | 3 | 80 |
| Part Number |
|---|
| A-310-2 |
| A-310-3 |
| A-310-3H |
| A-310-4H |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Application | Types | Material | Finish | Selfishly | Full Length (mm) | Overall width (mm) | Full height (mm) | Plate Thickness (mm) | O.D. (mm) | Accessory | Applicable Knobs | Product Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 81.47 | 1 Piece(s) | 1 Day(s) | Outdoor cubicle, Switchboard | Main Body | Zinc Alloy (ZDC) | Acrylic Resin Baked Paint | Left/Right Combination Type | - | - | - | Up to 7 | 50 | Large Nut, Screw Set | A-310-1H, 2H | 00590 | ||
MYR 53.88 | 1 Piece(s) | 1 Day(s) | Outdoor cubicle, Switchboard | Main Body | Zinc Alloy (ZDC) | Acrylic Resin Baked Paint | Left/Right Combination Type | - | - | - | Up to 2 | 34 | Large Nut, Screw Set | A-310-3H | 00591 | ||
MYR 30.46 | 1 Piece(s) | 1 Day(s) | for A-310-3 and A-1310-3 | Handle key | Aluminum Alloy (ADC) | Satin chrome plating (MZCr) | - | 100 | 22 | 30 | - | - | - | - | 00592 | ||
MYR 21.29 | 1 Piece(s) | 1 Day(s) | for A-310-4 and A-1310-4 | Handle key | Zinc Alloy (ZDC) | Satin chrome plating (MZCr) | - | 90 | 16 | 26 | - | - | - | - | 00594 |
Loading...
Specification/Dimensions
-
Application
-
Types
-
Material
-
Finish
- Acrylic Resin Baked Paint
- Satin chrome plating (MZCr)
-
Selfishly
- Left/Right Combination Type
-
Full Length(mm)
-
Overall width(mm)
-
Full height(mm)
-
Plate Thickness(mm)
-
O.D.(mm)
-
Accessory
-
Applicable Knobs
-
type
- A-310-2
- A-310-3
- A-310-3H
- A-310-4H
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
