Straight Shank, Light Brand Drill, 90° Chamfer Type N 540
Chamfering and drilling can be performed in one step.
Japanese Only
Part Number
Configured Part Number is shown.
0540-004.500
| Part Number |
|---|
| 0540-004.500 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
MYR 336.94 | 1 Piece(s) | 5 Day(s) or more |
Loading...
Basic Information

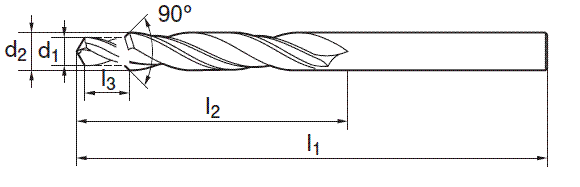

| Hole diameter (drill diameter) d1(mm) | 3.3 | Groove Length l2(mm) | 47 | work material | general steel / Quenched and tempered steel / Stainless Steel / Cast Iron / Aluminum |
|---|---|---|---|---|---|
| Tool Material Type | HSS | Overall Length L1(mm) | 80 | Shank Type | straight shank |
| Coating Y/N | Available | Coating Type | Other | With/without Oil Hole | NA |
| Number of flutes(sheet) | 2 | tip angle(°) | 118 | Step Length l3(mm) | 11.4 |
| blade diameter d2(mm) | 4.50 | Metric Screw | M4 | Standard | DIN8378 |
| Blade diameter tolerance | h8 | Coating Details | Homogenizer |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
